Industrial LCD Displays
Hello Lighting is a leading professional manufacturer of industrial LCD displays and touchscreens in China since 2010. We are committed to providing high-quality, highly reliable industrial display solutions.
Core Advantages: Long lifespan, high stability, high brightness, extreme temperature resistance, integrated touch display
Applications: Industrial control, human-machine interaction, instrumentation, elevators, etc.
Size Range: 2.4 inches to 10.1 inches
Customizable Options: Glove-compatible touch, waterproof, condensation-resistant, shatterproof, UV resistant
 |
 |
Characteristics of Industrial LCD Screens
Category | Description |
Long Lifetime | Designed for 24/7 continuous operation with a lifespan of 50,000+ hours. |
High Stability | Reliable performance in demanding industrial environments. |
High Brightness | Excellent sunlight readability with optional ultra-high brightness (1000+ nits). |
Extreme Temperature Tolerance | Operates reliably in wide temperature ranges (-30°C to 85°C). |
Touch & Display Integration | Seamless integration of LCD and touch panel for streamlined design. |
Glove-Touch Option | Supports operation while wearing protective gloves. |
Waterproof & Anti-Condensation | Special coatings to resist moisture and condensation. |
Anti-Shatter & UV Resistant | Durable construction with UV protection for outdoor or harsh environments. |
Types of Industrial LCD Displays
Type | Description |

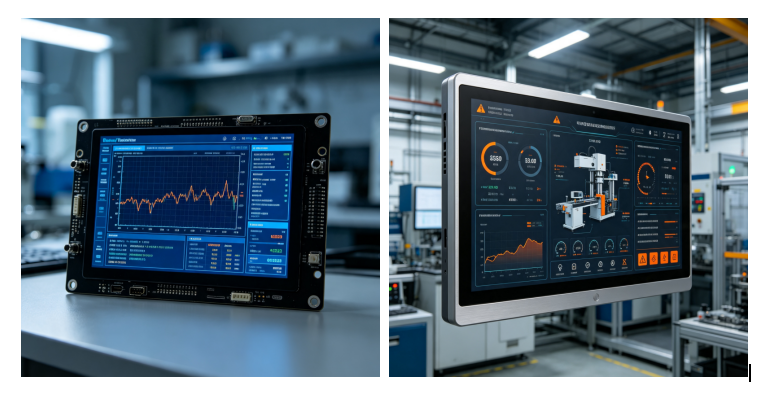

Open Frame Industrial LCD Display | Open-frame design for easy integration into larger systems or enclosures. |

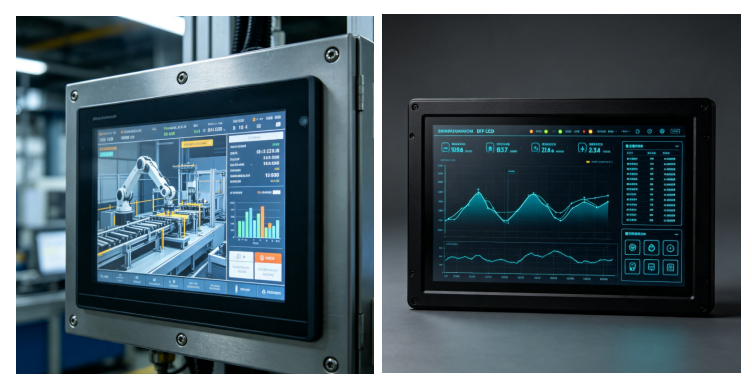

Embedded Industrial LCD Display | Compact design that mounts directly into equipment panels for seamless integration. |
Rack Mount Industrial LCD Display | Standard rack-mountable design (e.g., 19-inch) for server rooms and control centers. |
Flip-Chip Industrial LCD Display | Innovative flip-chip (COB) packaging for enhanced reliability and compact size. (Note: If referring to a mounting style, please clarify) |
Wall Mount Industrial LCD Display | Designed for wall-mounted installation, ideal for signage and control stations. |
Hello Lighting delivers OEM/ODM custom industrial LCD display solutions tailored to your needs since 2010.
Below are our popular industrial lcd displays products. Please filter by your requirements or click the links below to view specific products in each size.
For customized services, please send your detailed requirements to our email : sales@hello-lighting.com.
Selected filter criteria
Product List
| IMG | Inquire | Size | P/N | Resolution | Interface | Luminance | Viewing Angle | OD Size(mm) | Op.Temp | St.Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

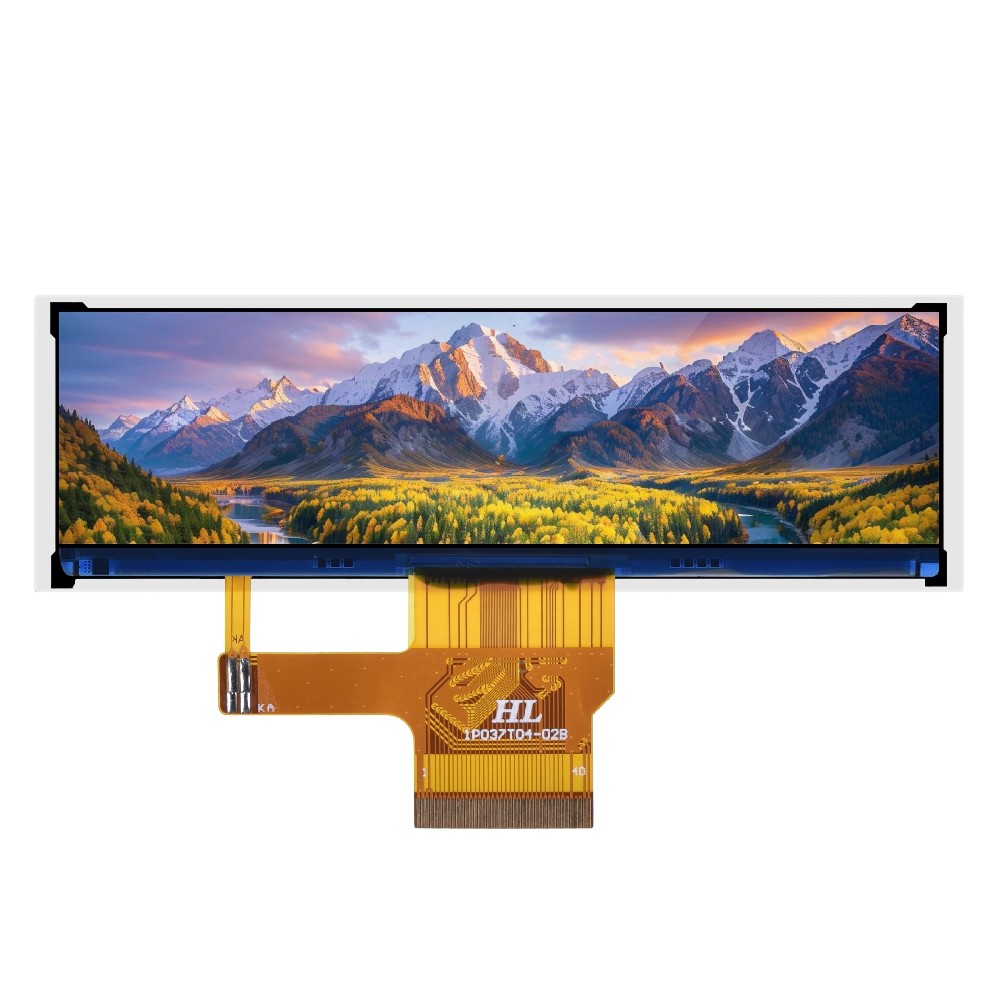

Inquire | 3.7 | HL037T04-02 | 480x110 | RGB | 500nits | IPS | 105.24X34x3.9 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 4.3 | HL043T011-01 | 480x272 | RGB | 300nits | 12 o'clok | 105.5x67.2X2.95 | -20~+70℃ | -30~+80℃ | Download |
|
Inquire | 4.3 | HL043T31C-04 | 480x272 | RGB | 300nits | IPS | 123.04x84.46x4.8 | -20~+70℃ | -40~+80℃ | Download |
 |
Inquire | 6.86 | HL064T01-01 | 1024x768 | LVDS | 400nits | IPS | 140.65X110.5X4.83 | -30~+85℃ | -35~+85℃ | Download |
 |
Inquire | 5 | HL050T40-01 | 640x480 | RGB | 1000nits | 6 o'clock | 113.7X88.5X4.8 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 5.2 | HL052T04-01 | 1200x1200 | MIPI | 1000nits | IPS | 110X105X4.2 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 5.7 | HL057T13R-01 | 640x480 | RGB | 500nits | IPS | 127X98.43X5.85 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 7 | HL070T62-05 | 800x480 | MCU | 500nits | 12 o'clok | -20~+70℃ | -30~+80℃ | Download | |
.jpg) |
Inquire | 7 | HL070T20-01 | 1024x600 | LVDS | 400nits | IPS | 164.9X100X3.55 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 7 | HL070T51-01 | 1024x600 | HDMI | 400nits | IPS | 165.3X121x7.75 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 7 | HL070T15-01 | 800x480 | RGB | 500nits | 6 o'clock | 164.9X100.0X3.55 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 7 | HL070T24-01 | 800x480 | RGB | 400nits | 6 o'clock | 165X104.44X5.2 | -20~+70℃ | -30~+80℃ | Download |
 |

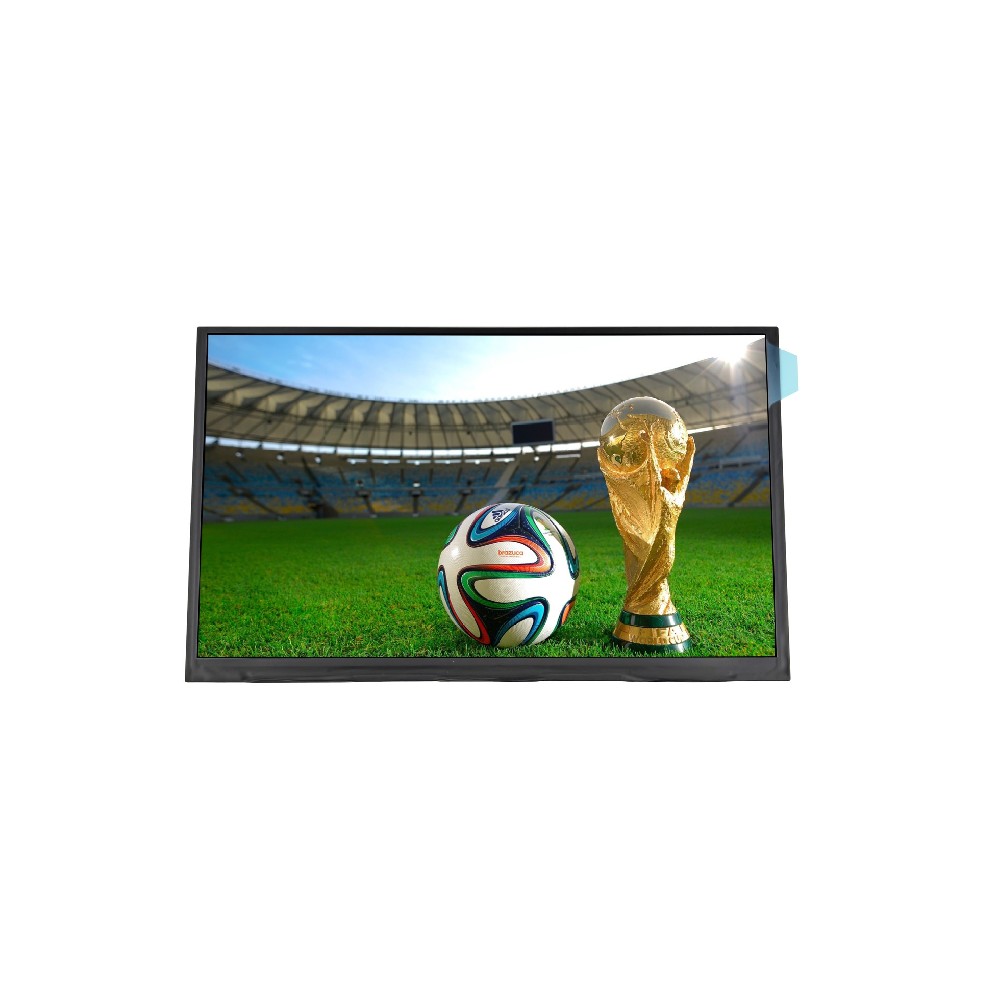

Inquire | 10.1 | HL101T33-01 | 1920x1080 | LVDS | 1000nits | IPS | 237.69X142.7x7.2 | -40~+85℃ | -40~+90℃ | Download |
 |

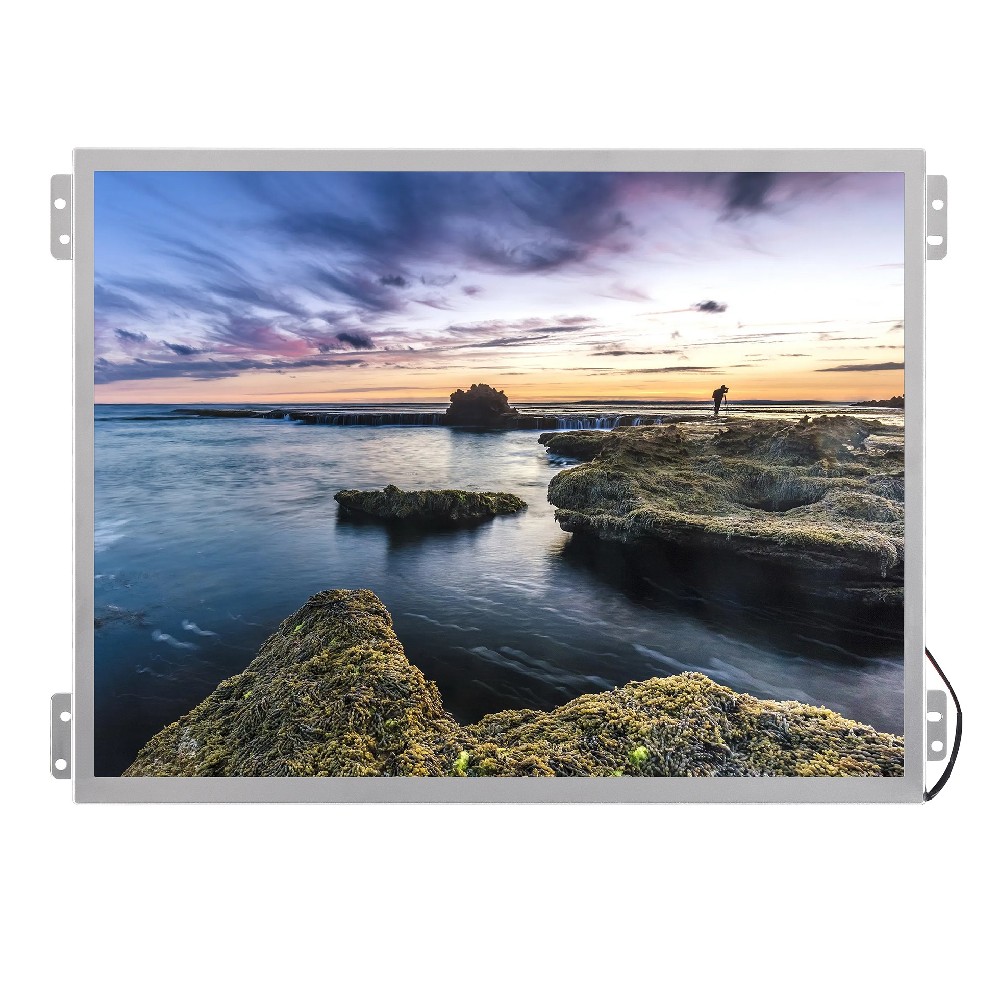

Inquire | 10.4 | HL104T08-01 | 1024x768 | LVDS | 1000nits | IPS | 233.40X175.80X6.6 | -30~+80℃ | -40~+85℃ | Download |
Need a Custom Display Solution?
Our team of experts can help you design and implement a custom display solution tailored to your specific needs and requirements.
