OLED Displays
Hello Lighting’s OLED displays deliver exceptional image quality with true blacks, vibrant colors, and ultra-wide viewing angles. Unlike traditional LCDs, OLED (Organic Light Emitting Diode) technology eliminates the need for a backlight by allowing each pixel to emit its own light, resulting in superior contrast and energy efficiency.
 |
 |
Key Features of OLED Display
Perfect Black & Infinite Contrast – Each pixel turns off completely to achieve true black, delivering an unlimited contrast ratio for stunning depth and detail.
Vivid & Accurate Colors – Wide color gamut (100%+ DCI-P3) ensures lifelike, saturated images with exceptional color accuracy.
Ultra-Wide Viewing Angle – Consistent brightness and color even at extreme angles (up to 178°), with no color shift or contrast loss.
Fast Response Time – Microsecond-level response time eliminates motion blur, ideal for dynamic video playback and high-speed graphics.
Ultra-Thin & Lightweight – The absence of a backlight allows for extremely slim profiles and flexible form factors.
Low Power Consumption – Energy-efficient design, especially when displaying dark content, as black pixels consume no power.
Technical Specifications of OLED Display
Parameter | Value |
Screen Sizes | Customizable (typical range: 0.96" to 15.6"+) |
Resolution | Up to 4K UHD (depending on size) |
Brightness | 150 – 600 cd/m² (transparent/flexible options available) |
Contrast Ratio | Infinite (100,000:1+) |
Viewing Angle | 178° (H) / 178° (V) |
Response Time | ≤ 0.01ms |
Operating Temperature | -20°C to 70°C (industrial grade available) |
Applications of OLED Display
OLED displays serve diverse applications including automotive displays, consumer electronics, medical devices, industrial HMI, smart home panels and high-end indoor digital signage.
Hello Lighting delivers OEM/ODM custom OLED display solutions tailored to your needs since 2010. Below are our popular OLED displays products. Please filter by your requirements or click the links below to view specific products in each size.
For customized services, please send your detailed requirements to our email : sales@hello-lighting.com.
Selected filter criteria
Product List
| IMG | Inquire | Size | P/N | Resolution | Interface | Luminance | Viewing Angle | OD Size(mm) | Op.Temp | St.Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

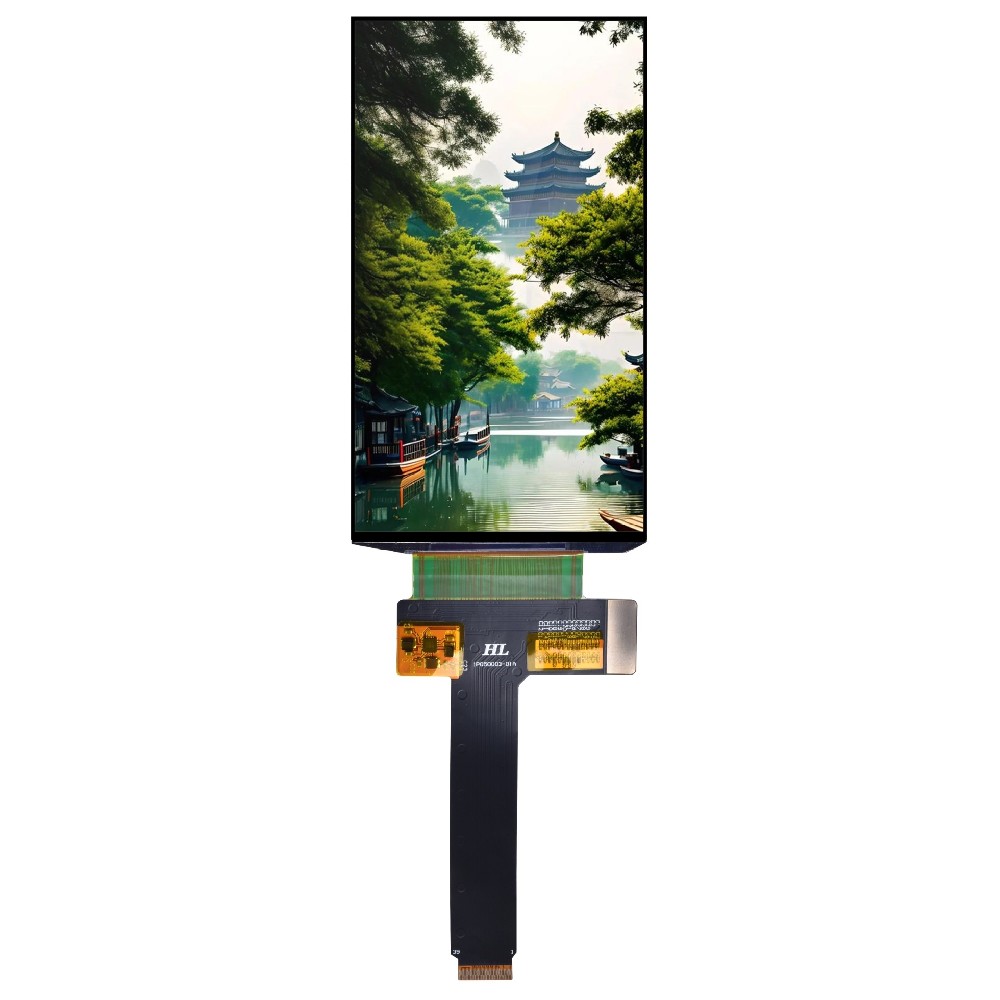

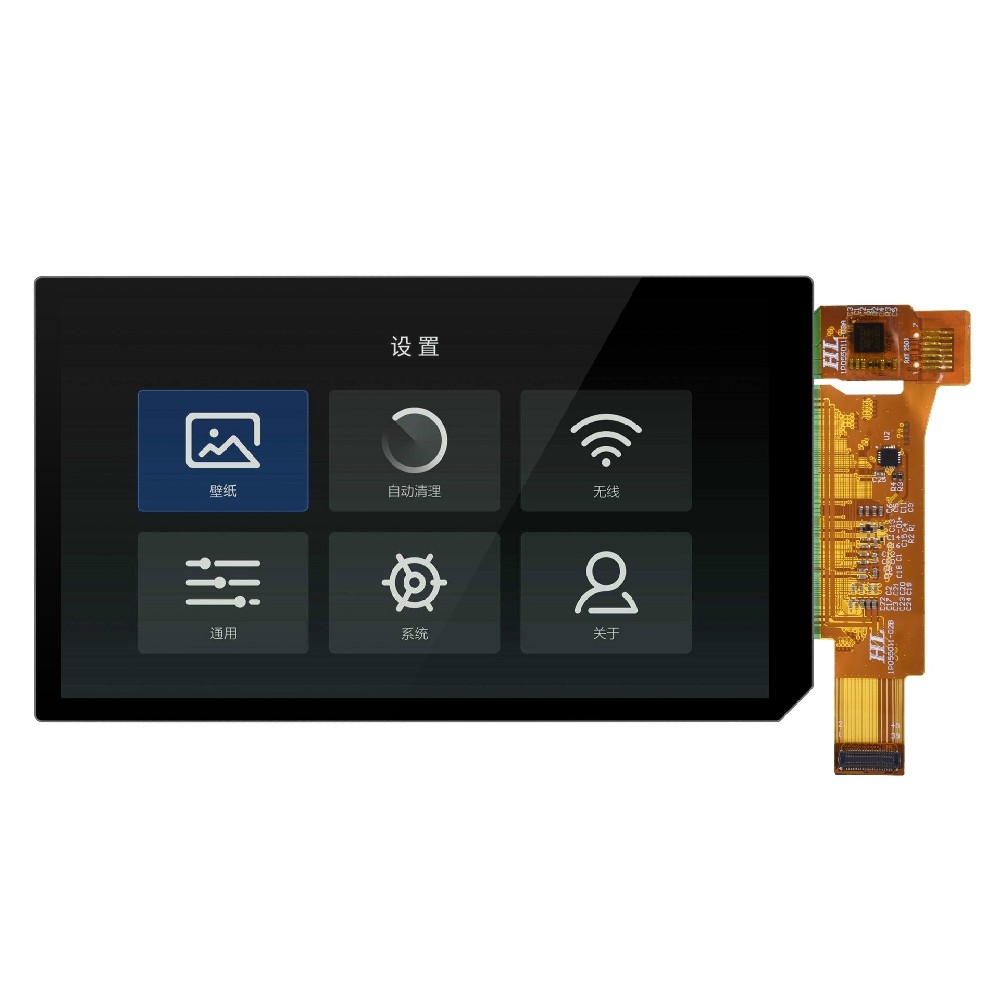

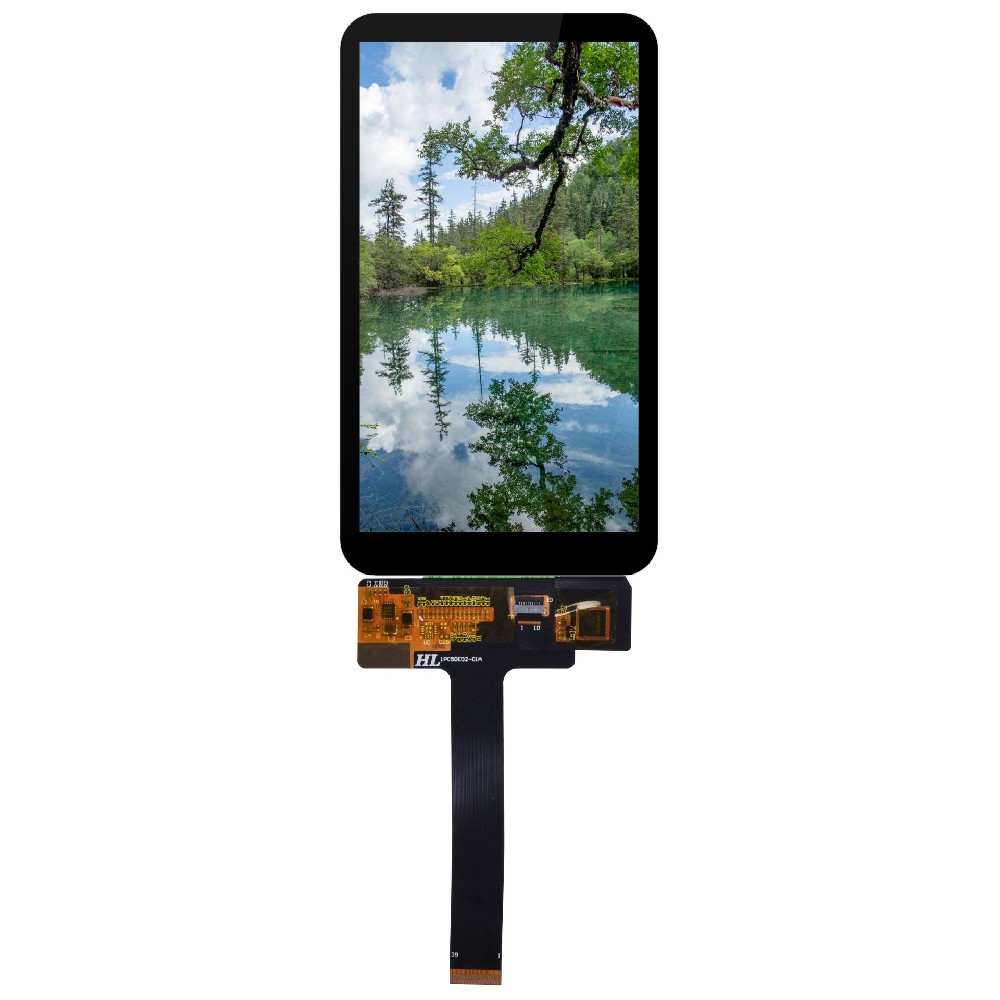

Inquire | 1.78 | HL017T03-01 | 368x448 | MIPI | 350nits | IPS | 30.6X37.99x0.8 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 2.14 | HL020E21-01 | 480x480 | MIPI,SPI,QSPI | 600nits | IPS | 40.29X41.09x0.8 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 5 | HL050O02-01 | 720x1280 | MIPI | 400nits | IPS | 65.92X118.64 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 5 | HL050E02C-01 | 720x1280 | MIPI | 400nits | IPS | 71.92X127.14 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 5.5 | HL055O11-03 | 1080x1920 | MIPI | 500nits | IPS | 69.74×126.6x0.66 | -20~+70℃ | -30~+80℃ | Download |
Need a Custom Display Solution?
Our team of experts can help you design and implement a custom display solution tailored to your specific needs and requirements.
Contact Us
