Key Spec:
LCD Size: 10.1'' IPS, portrait
Resolution: 1200x1920
Brightness: 1000nits
interface: Mipi
Working Temperature:-10~+60℃
Storage Temperatture:-20~+70℃

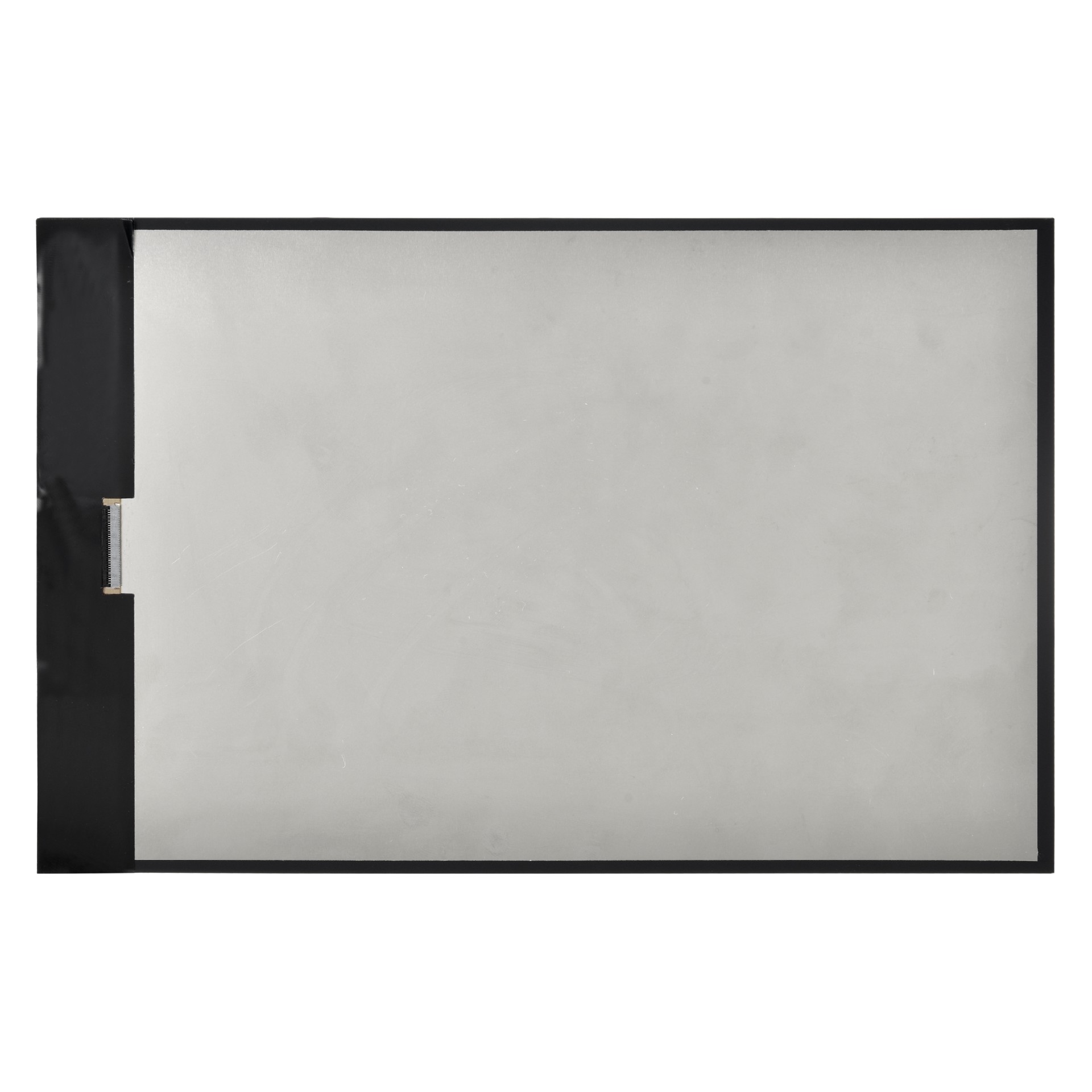

10.1" 1200x1920 portrait LCD panel
High brightness with lower power consumption
Outdoor application
Broadcast monitoring display

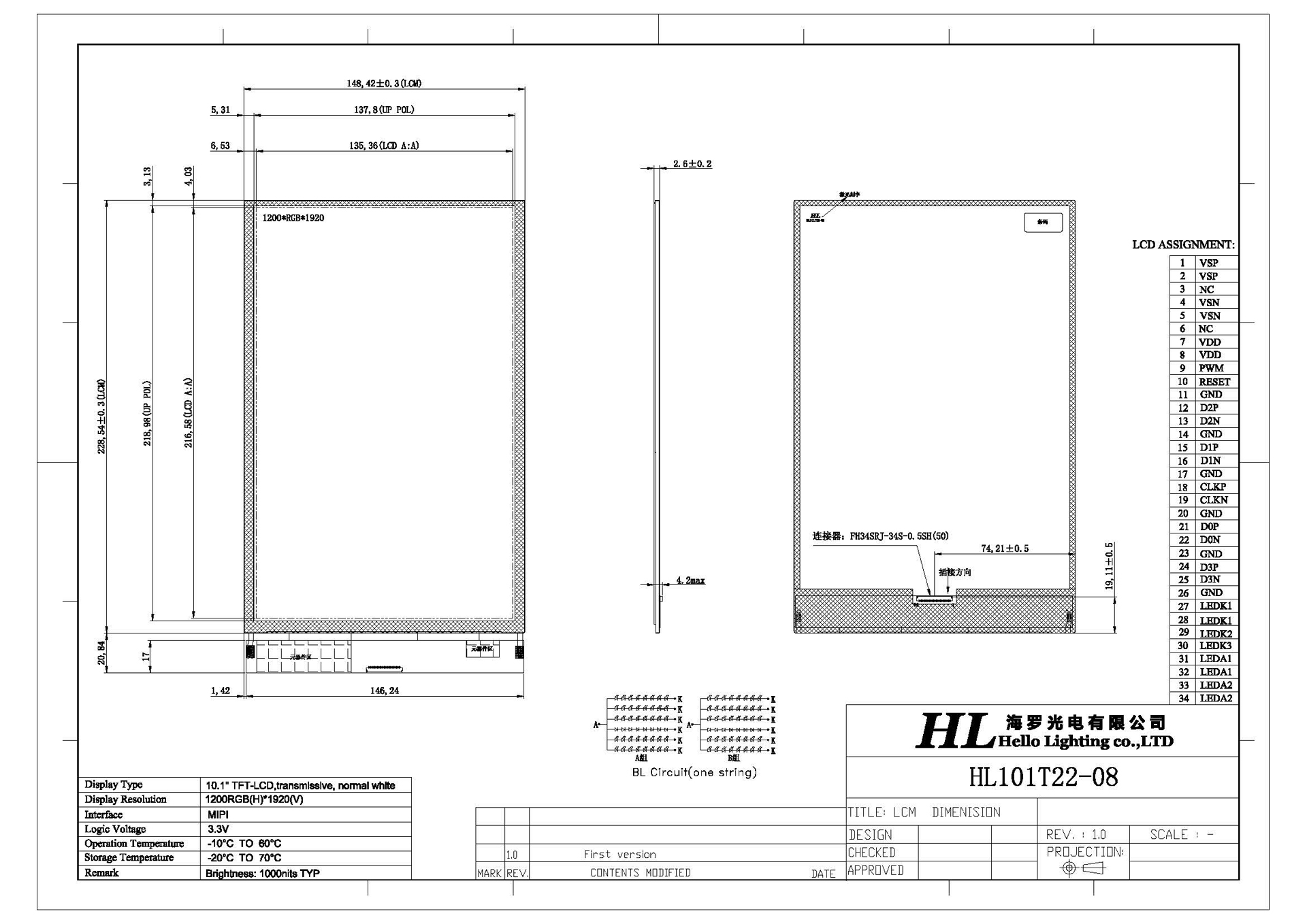

| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL101T22-08 | Resolution | 1200x1920 |
| Interface | Mipi | Luminance | 1000nits |
| LCD Mode | IPS | Touch | Optional |
| OD Size (mm) | 148.42x228.54 | AA Size (mm) | 135.36x216.58 |
| View Angle | 80/80/80/80 | Surface Treatment | Anti-glare |
| Op. Temp. | -10~+60℃ | St. Temp. | -20~+70℃ |
Portable Tablet
Broadcast Monitoring Device
Vending Machine
Outdoor Device
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
