Custom Displays
| IMG | Inquire | Size | P/N | Resolution | Interface | Luminance | Viewing Angle | OD Size(mm) | Op.Temp | St.Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Inquire | 2.4 | HL024T01-01 | 240x320 | RGB,MCU | 200nits | 6 o'clock | 42.72X60.26x2.25 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 3.5 | HL035T15-01 | 320x480 | RGB | 350nits | IPS | 54.66X82.94X3.68 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 5 | HL050T48C-01 | 720x1280 | MIPI | 400nits | IPS | 64.8X118.6 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 5 | HL050T27C-02 | 1080x1920 | MIPI | 2000nits | IPS | 75.88X119.47X2.8 | -20~+70℃ | -30~+80℃ | Download |
 |

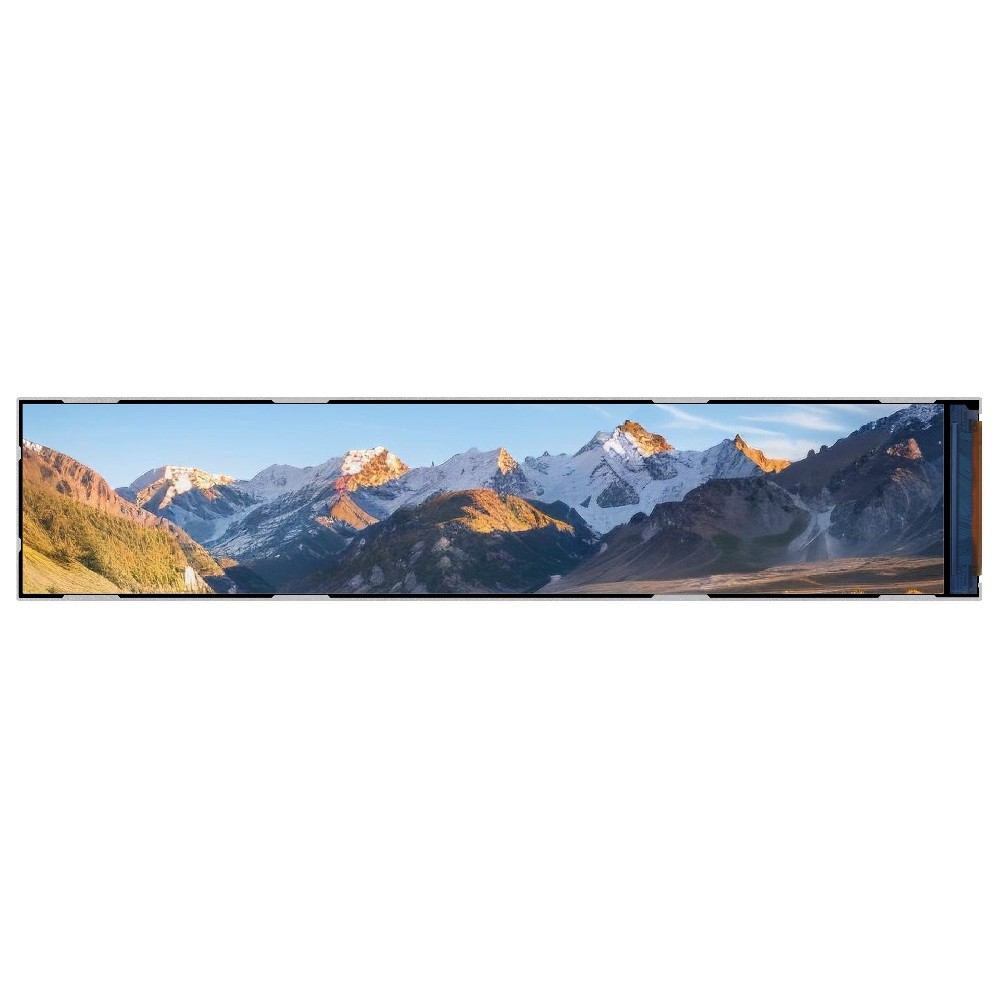

Inquire | 6.86 | HL068T02-01 | 280x1424 | MIPI | 300nits | IPS | 38.2×181.47x3.4 | -30~+80℃ | -35~+85℃ | Download |
 |
Inquire | 7 | HL070T55-01 | 1200x1920 | MIPI | 1500nits | IPS | 105.46X162.82X2.4 | -20~+70℃ | -30~+80℃ | Download |
 |
Inquire | 8 | HL080T21-02 | 800x1280 | MIPI | 1000nits | IPS | 114.8X184.2X2.65 | -10~+60℃ | -20~+70℃ | Download |
 |
Inquire | 10.1 | HL101T22-08 | 1200x1920 | MIPI | 1000nits | IPS | 148.42×228.54×2.6 | -10~+60℃ | -20~+70℃ | Download |
 |
Inquire | 15.6 | HL156T18C-01 | 1920x1080 | HDMI | 500nits | IPS | 395X244X21 | 0~+50℃ | -10~+60℃ | Download |
 |

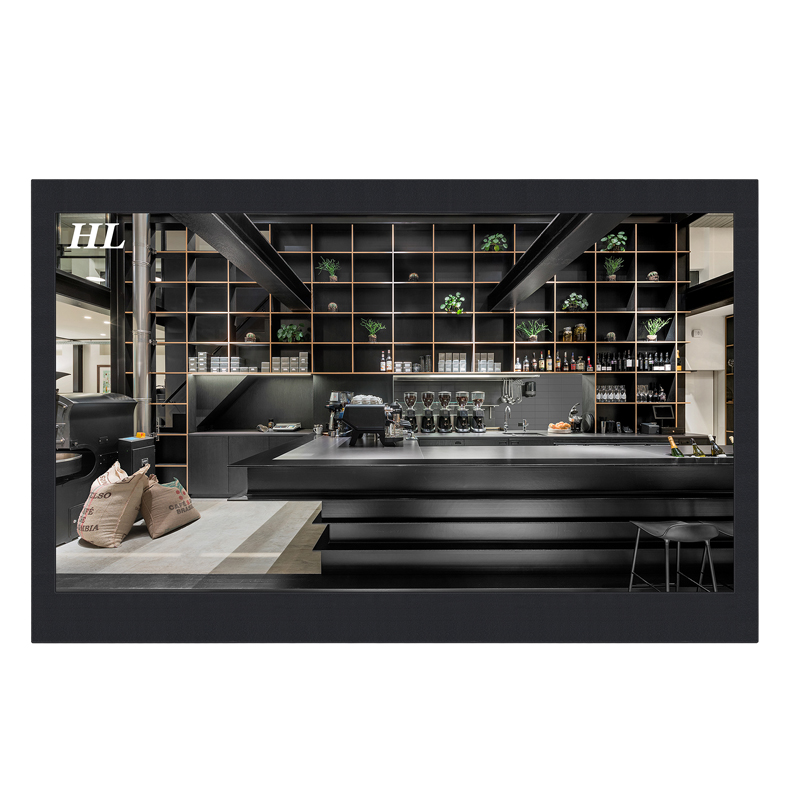

Inquire | 17.3 | HL173T04-01 | 3840x2160 | EDP | 1500nits | IPS | 412.85X266.39X14.4 | 0~+50℃ | -20~+60℃ | Download |
 |

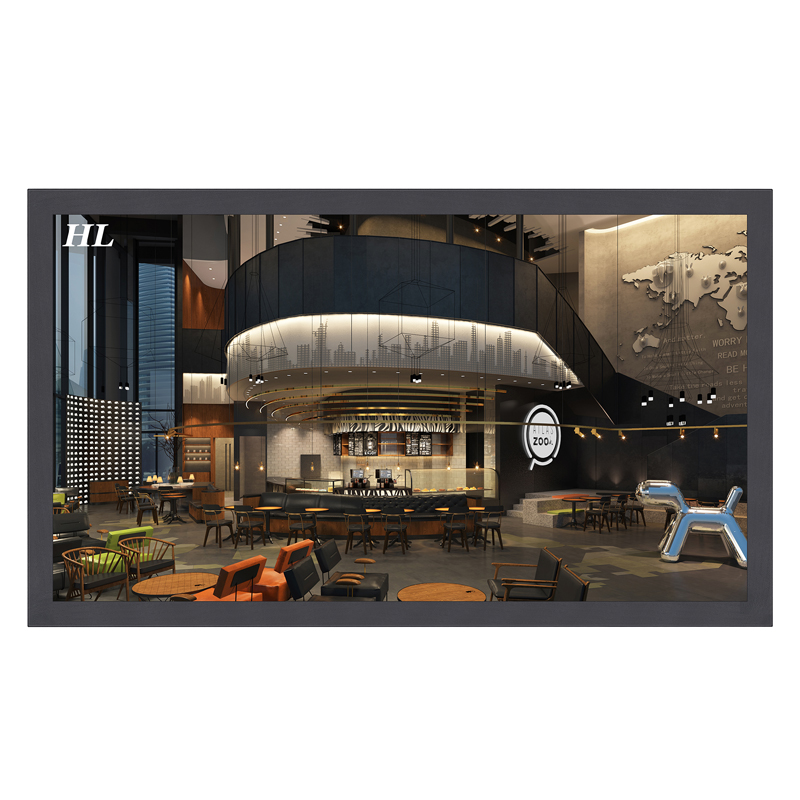

Inquire | 23.8 | HL238T06-06 | 3840x2160 | EDP | 1300nits | IPS | 570X340X11.7 | 0~+50℃ | -20~+60℃ | Download |
