OLED Size: 2.14'' IPS OLED
Lower power consumption
Sunlight readable for outdoor application
Resolution: 480X480
Brightness: 600nits
Mutilple interface: SPI/QSPI/MIPI
Contrast: 50000:1
Working Temperature:-20~+60℃
Storage Temperatture:-30~+70℃

AMoled means lower power consumption
High brightness for outdoor application
Square Shape for hand-held device
High contrast :50000:1
True black color
Multiple interface: SPI/QSPI/Mipi

| Manufacturer | Hello Lighting | Place of Origin | China |

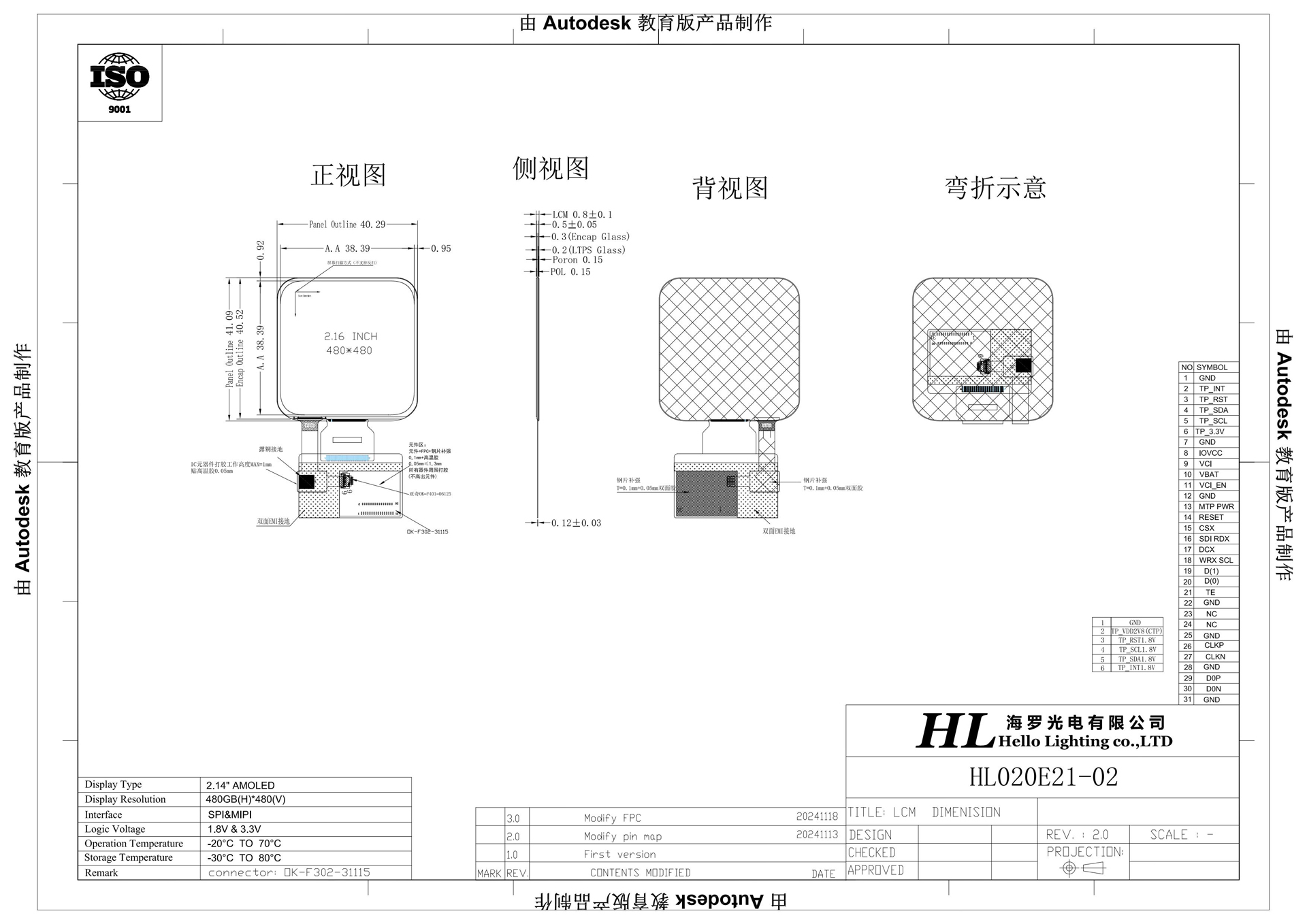

| P/N | HL020E21-02 | Resolution | 480X480 |
| Interface | SPI/QSPI/MIPI | Luminous | 600nits |
| LCD Mode | IPS | Touch | Yes |
| OD size(mm) | 40.29X41.09x0.88 | AA size(mm) | 38.39X38.39 |
| View Angle | 80/80/80/80 | Surface Treatment | Anti-glare |
| Op. Temp. | -20~+70℃ | St.Temp. | -30~+80℃ |



Designed for cover display of folding mobile phone
Square shape for Media controller
Home appliance
Hand-held smart device
White goods
GPS Meter /Speedometer


IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
