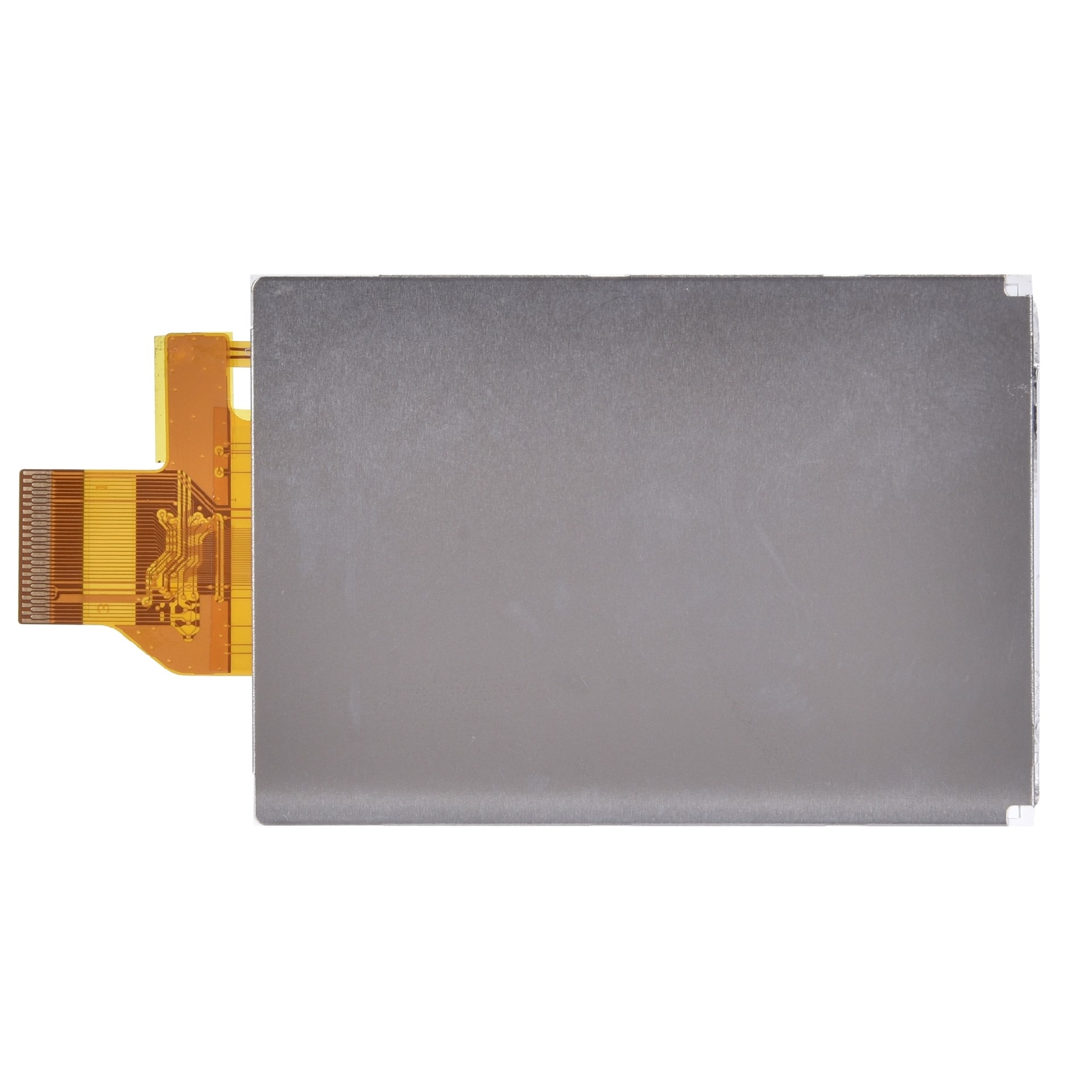

Key Spec:
LCD Size: 2.4" TN ,
Resolution: 240X320
Brightness: 200nits
interface: MCU/RGB
Working Temperature:-20C~+70℃
Storage Temperatture:-30C~+80℃
BOE LCD Cell BT024QVQ-N13/BT024QVQ-N14
Industrial handheld device
With metal frame,rugged design
Capacitive Touch and Optical bonding is available
We also have IPS panel.
| Manufacturer | Hello Lighting | Place of Origin | China |

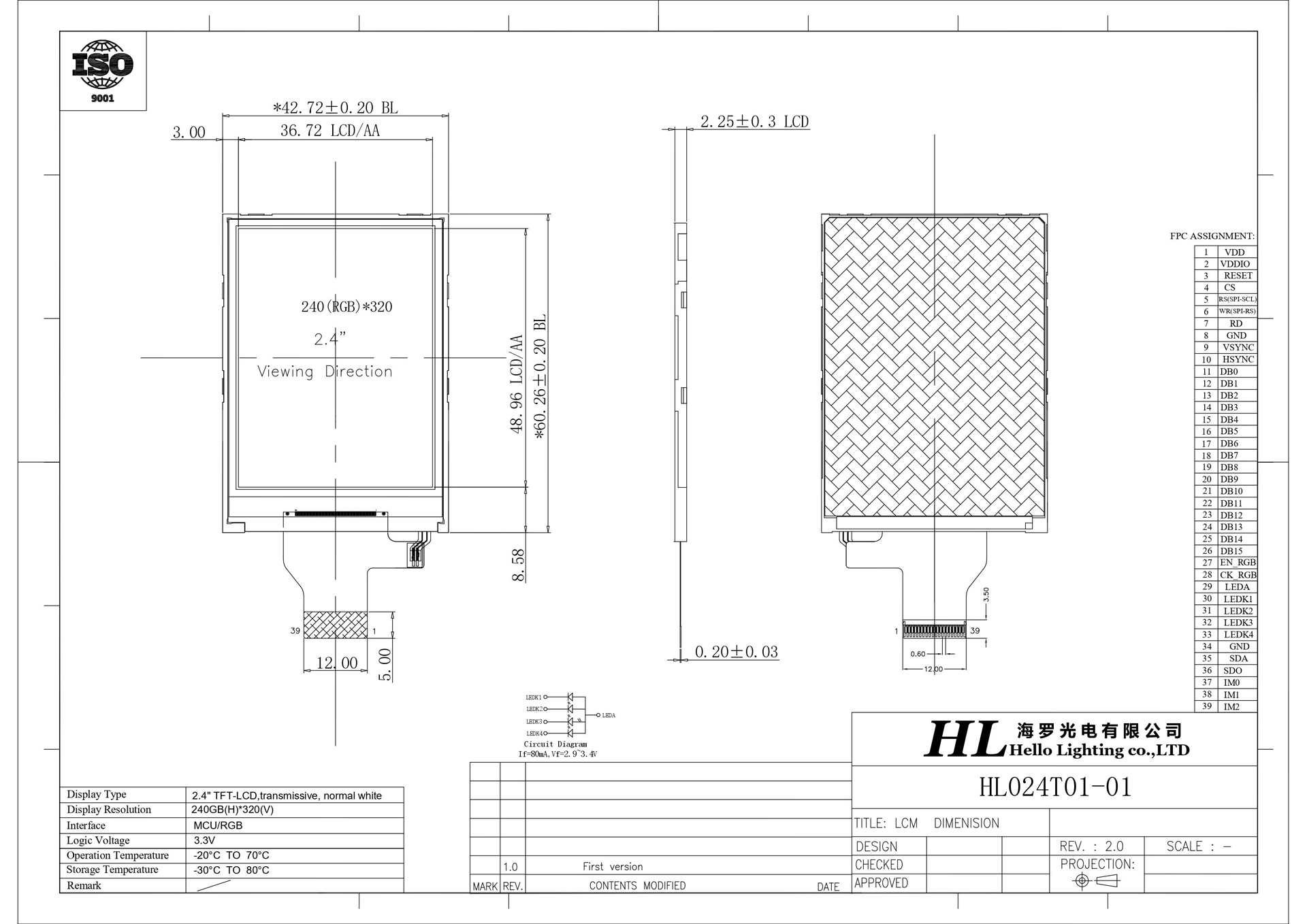

| P/N | HL024T01-01 | Resolution | 240X320 |
| Interface | RGB/MCU | Luminance | 400nits |
| LCD mode | 6O'clock | Touch | CTP is optional |
| OD size(mm) | 42.72X60.26x2.25 | AA size(mm) | 36.72X48.96 |
| View Angle | 45/45/50/20 | Surface Treatment | Anti-Glare |
| Op. Temp. | -20~+70℃ | St. Temp. | -30~+80℃ |
Original design is for coffee grinder machine
For Smart Camera ( sports camera)
For Industrial Thermal Imager
For Handheld Acoustic Imager Industrial Ultrasonic Imager
Industrial handheld meter
