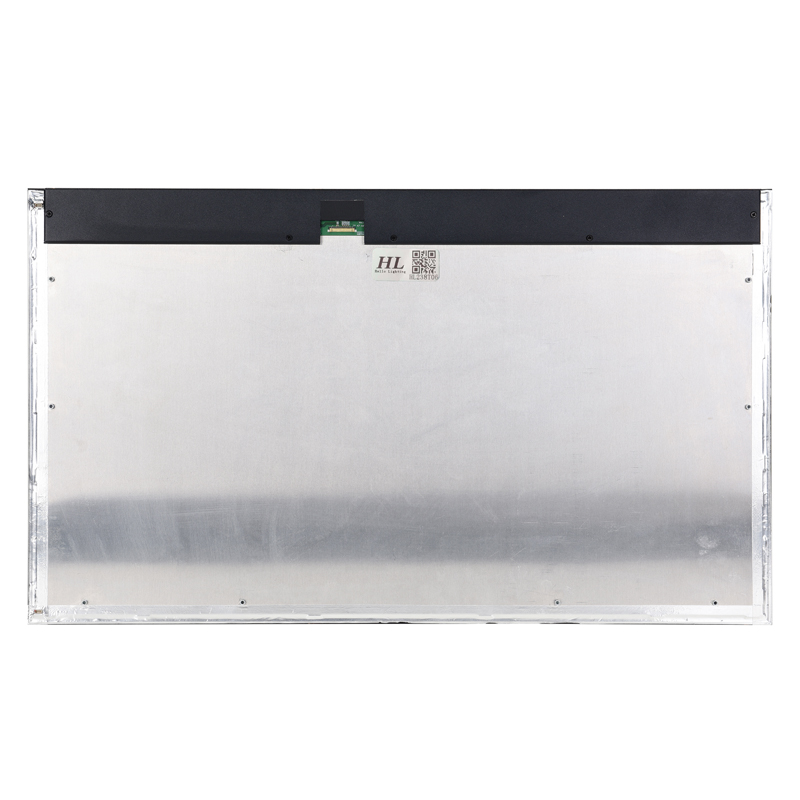

23.8inch 3840X2160 LCD display, high brightness and wide color gamut !
23.8inch 3840X2160 LCD display, high brightness and wide color gamut !
23.8inch 3840X2160 LCD display, high brightness and wide color gamut !

23.8inch 3840X2160 LCD display, high brightness and wide color gamut !

Key Spec:
LCD Size: 23.8'' IPS
Resolution: 3840X2160
Brightness: 1300nits
interface: eDP
Working Temperature: 0~+50℃
Storage Temperatture:-20~+60℃


  •  High resolution , 4K

  •  Wide Color Gamut :108% DCI P3

  •  High brightness 1300nits

  •  Display color 1.07Billion

  •  Rugged Mechanical Design

  •  Broadcast display



ManufacturerHello LightingPlace of OriginChina
P/NHL238T06-06Resolution3840X2160
InterfaceeDPLuminance1300nits
LCD ModeIPSTouchOptional
OD Size(mm)570X340AA Size(mm)527.04X296.46
View Angle178/178Surface Treatment
Anti-glare
Op.Temp.0~+50℃St.Temp.-20~+60℃

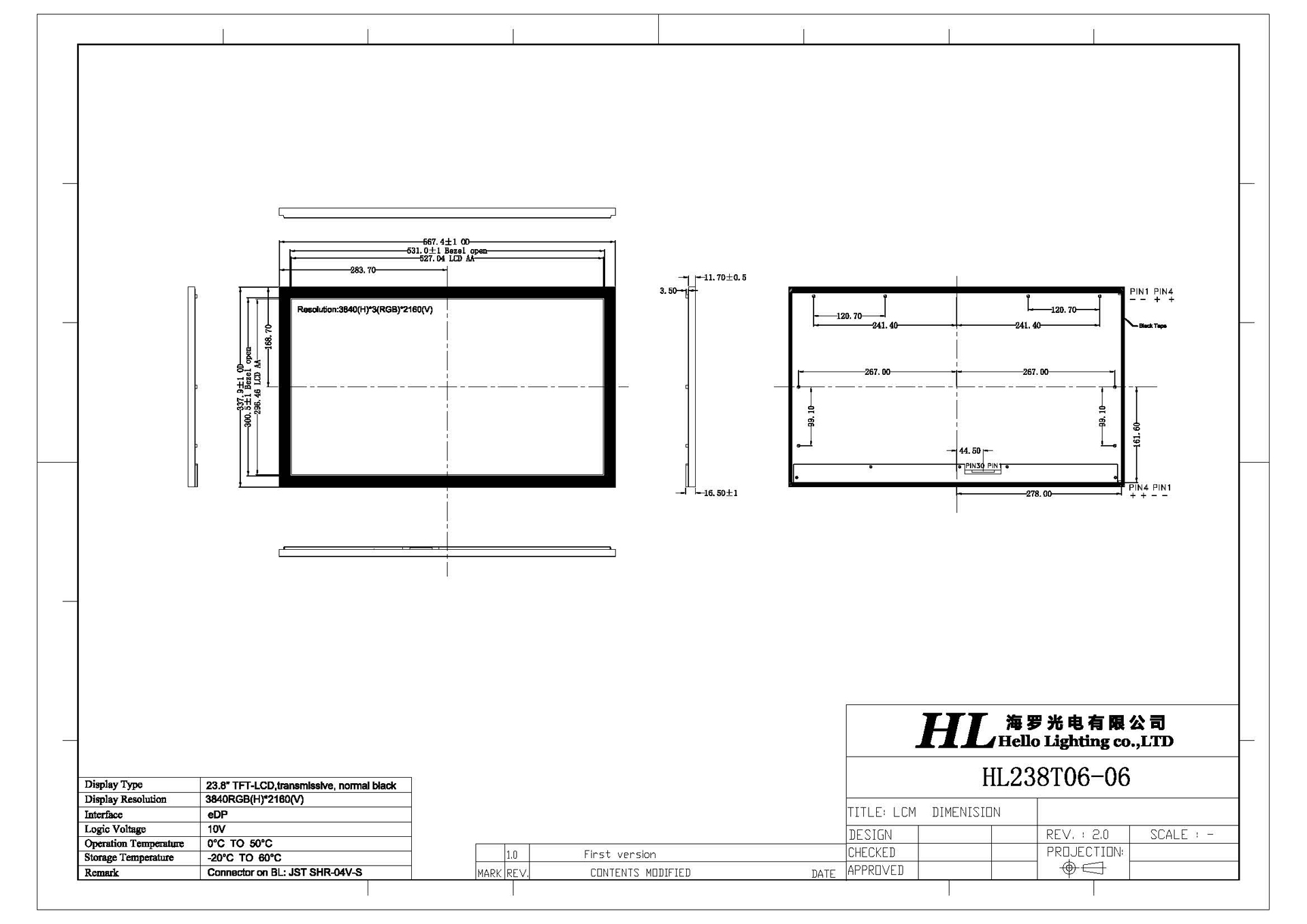

HL238T06-06 v1 Model (1).jpg



  • SWIT 23.8" 4K HDR DM-246U

  • Display for film and television studio shooting monitoring

  • Display for director/director monitoring

  • Other broadcast monitoring display





  • IATF16949 certification

  • ISO9001 certification

  • High-tech Enterprise Certification

  • Fully automated production line
