Key Spec:

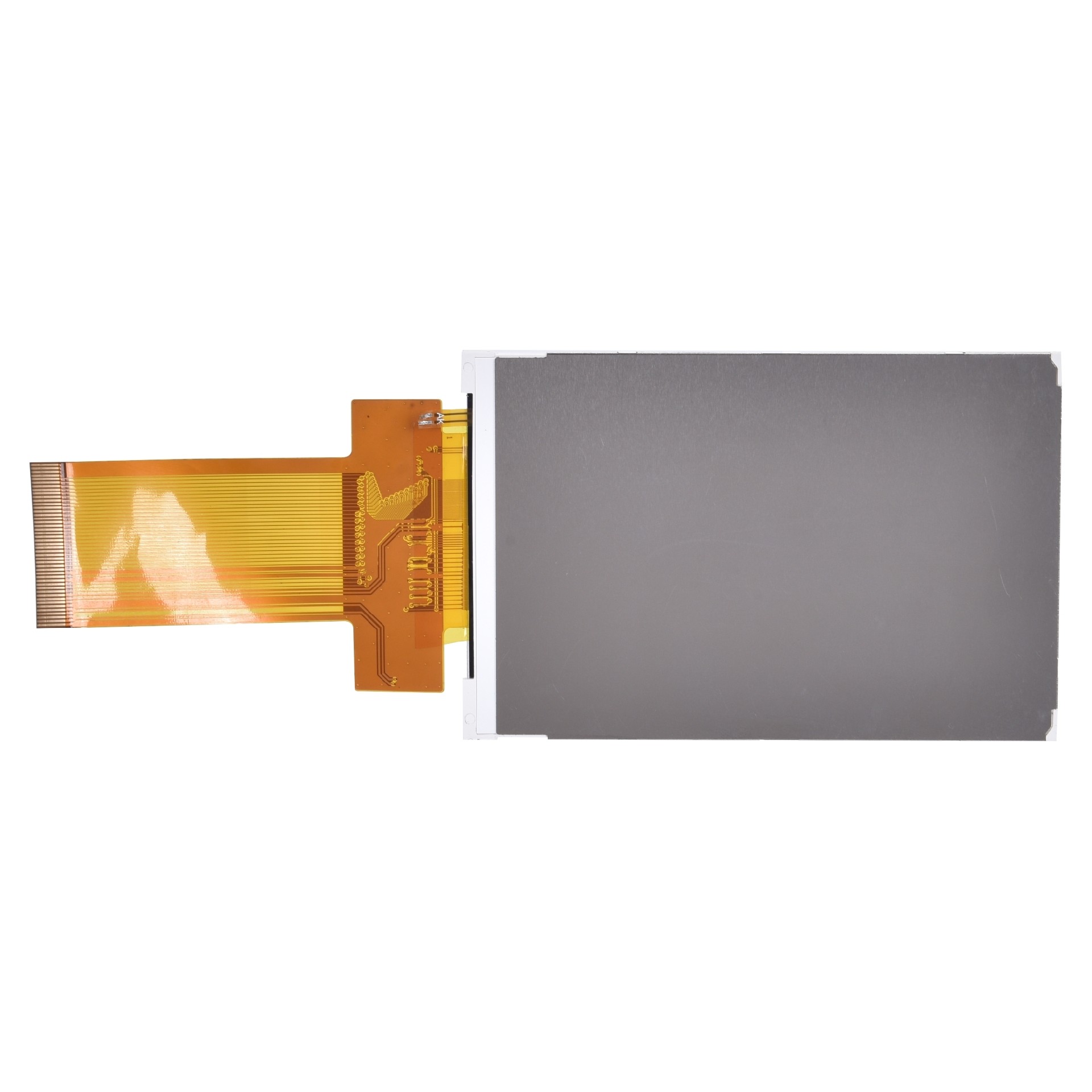

LCD Size: 3.5'' IPS
Resolution: 320X480
Brightness: 350nits
interface: RGB
Working Temperature:-20~+70℃
Storage Temperatture:-30~+80℃
Industrial application
Common application

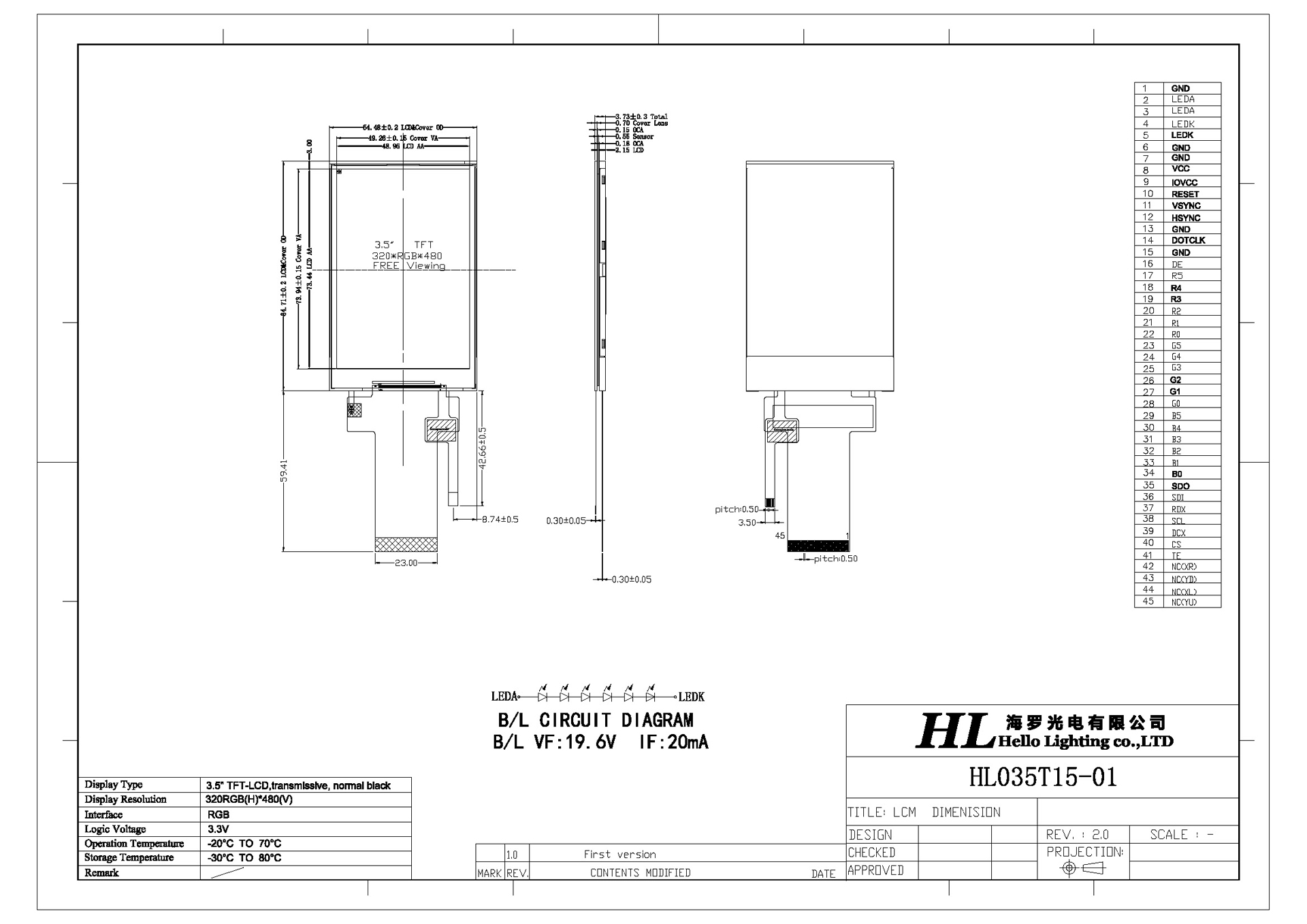

| P/N | HL035T15-01 | Resolution | 320X480 |
| Interface | RGB | Luminance | 350nits |
| Viewing Angle | TN/IPS | Touch | optional |
| OD Size(mm) | 64.48X84.71X3.37 | AA Size(mm) | 48.93x73.44 |
| Op.Temp | -20~+70℃ | St.Temp | -30~+80℃ |
