Key Spec:

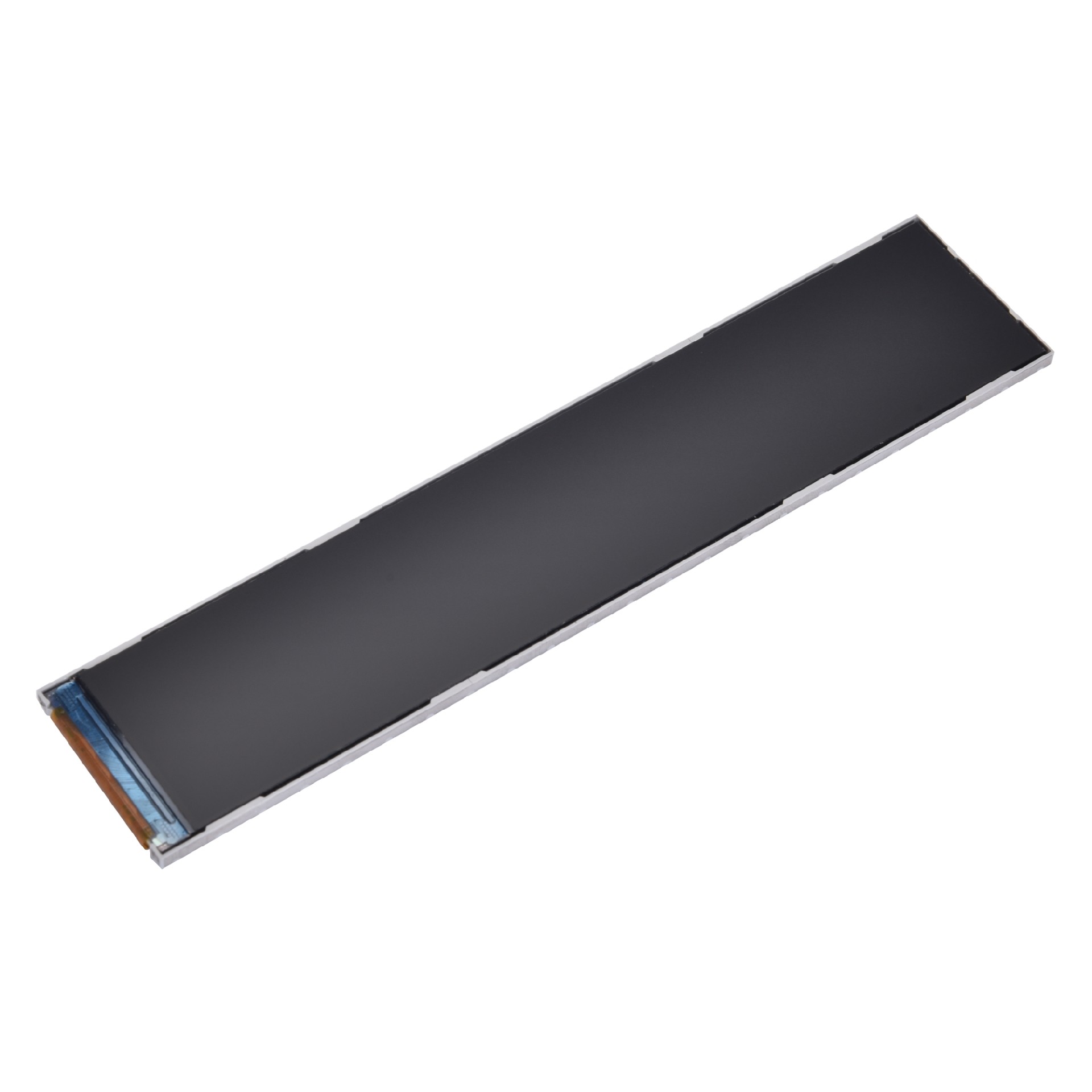

LCD Size: 6.86'' IPS
Resolution: 280x1424
Brightness: 400nits
interface: MIPI
Working Temperature:-30~+80℃
Storage Temperatture:-35~+85℃
Bar type LCD module .
Ultra stretched LCM
TDDI Cell
Color gamut :NTSC 65%
Wide working temperature
| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL068T02-01 | Resolution | 280X1424 |
| Interface | MIPI | Luminance | 300nits |
| Viewing Angle | IPS | Touch | Optional |

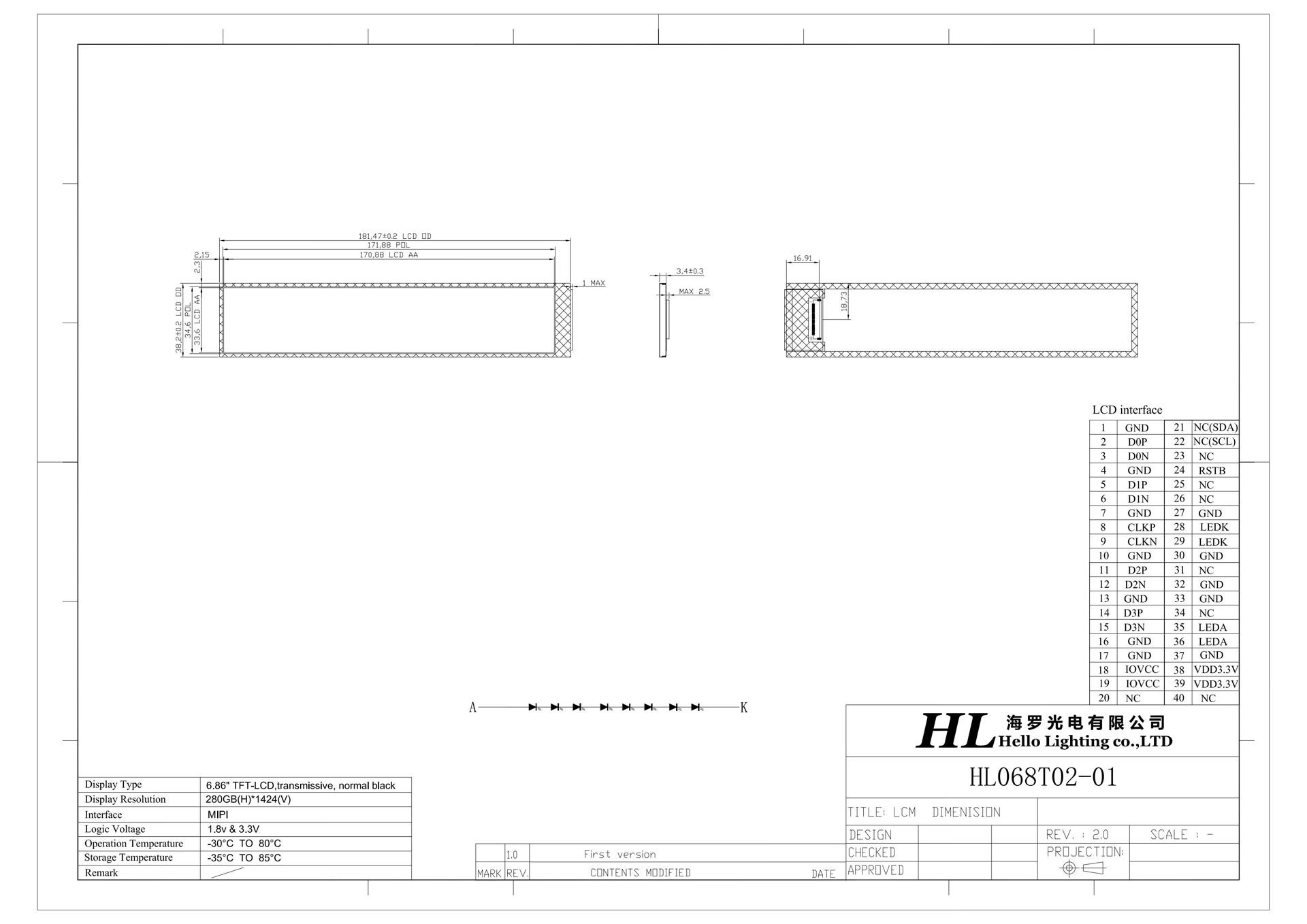

| OD Size(mm) | 181.47X38.2X3.4 | AA Size(mm) | 170.88X33.6 |
| View Angel | 85/85/85/85 | Surface Treatment | Glare |
| Op.Temp | -30~+80℃ | St.Temp | -40~+85℃ |
Original design is for Infusion Pump for Mindray
Widely used in Oven
Industrial machine
Automotive Dashboard/Cluster/Datalogger
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
