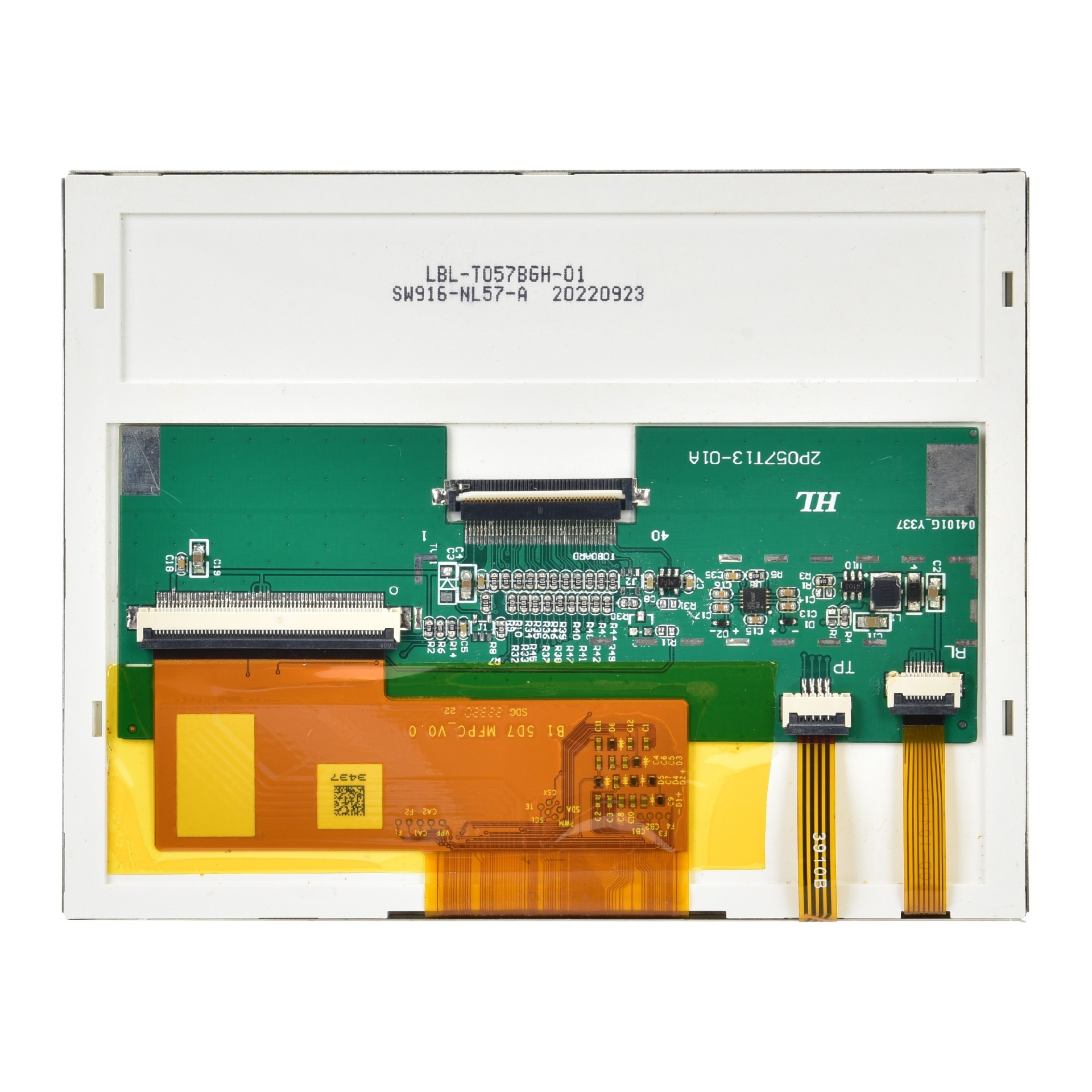

Key Spec:
LCD Size: 5.7'' IPS
Resolution: 640X480
Brightness: 500nits
interface: RGB
Working Temperature:-20~+70℃
Storage Temperatture:-30~+80℃
Industrial application
4:3 ratio
full replacement to EOL panel CLAA057VC01CW
Resisitive Touch is optional
IPS view Angle
| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL057T13R-01 | Resolution | 640X480 |
| Interface | RGB | Luminance | 500nits |
| LCD mode | IPS | Touch | Optional |
| OD Size (mm) | 127X98.43 | AA Size (mm) | 115.2X86.4 |
| View Angle | 80/80/80/80 | Surface Treatment | Anti-glare |
| Op. Temp. | -20~+70℃ | St. Temp. | -30~+80℃ |
Cockpit Dashboard Display for Naval Craft/Airplane
Industrial Control panel
Medical Equipment
Other euipment for defence&military applications
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
