Key Spec:
LCD Size: 7'' TN
Full replacement to AT070TN83
Touch: Resistive touch available
Resolution: 800X480
Brightness: 400nits
interface: RGB
Working Temperature:-20~+70℃
Storage Temperature:-30~+80℃

Industrial application
full replacement of AT070TN83

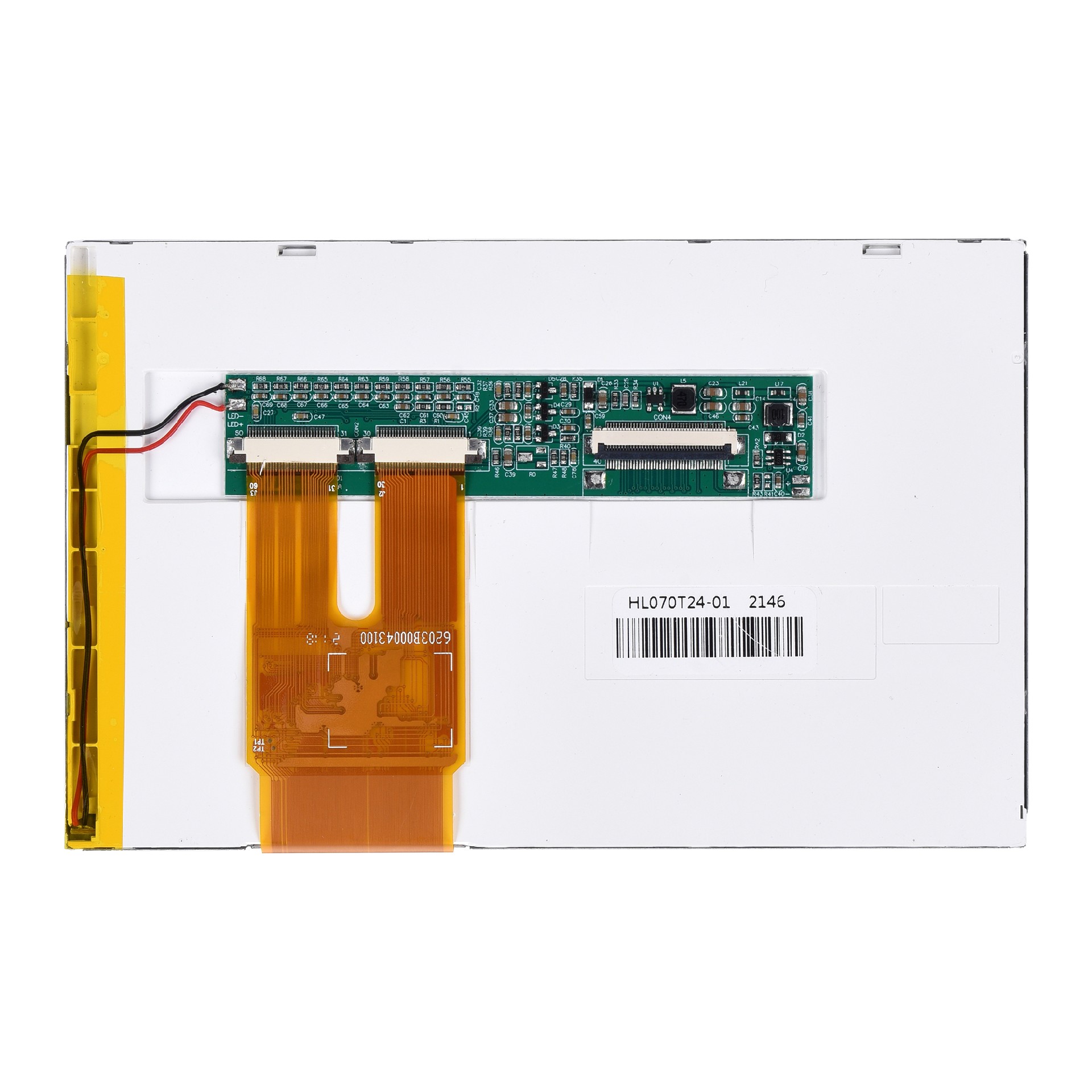

7" LCD with T-con board
AA size: 152.44X91.44mm

| Manufacture | Hello Lighting | Place of Origin | China |
| P/N | HL070T24-01 | Resolution | 800X480 |
| Interface | RGB | Luminance | 400nits |
| LCD mode | IPS | Touch | Optional |

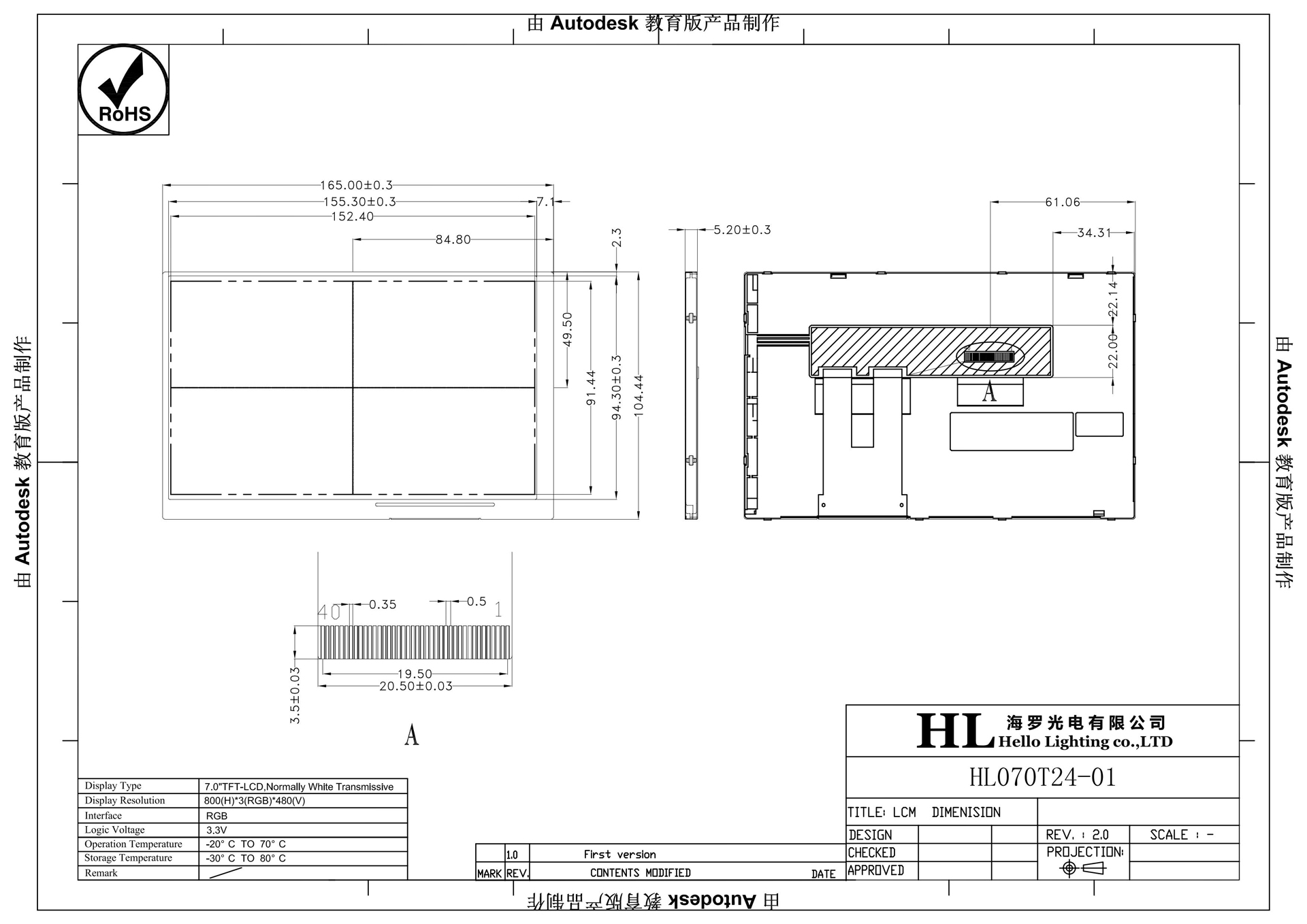

| OD Size (mm) | 165X104.44 | AA Size (mm) | 152.4X91.44 |
| View Angle | 70/70/60/70 | Surface Treatment | Anti-glare |
| Op. Temp. | -20~+70℃ | St. Temp. | -30~+80℃ |



Industrial control panel
Medical equipment display
Automotive Dashboard display
Cockpit dashboard display for airplane / naval craft
Other miltary/ defence applications


IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
