Key Spec:
LCD Size: 7'' TN
Resolution: 800x480
Thickness:3.55mm and 5.7mm are optional
Brightness: 500nits
interface: 50pin RGB
Touch: Resistive and Capacitive are optional
Working Temperature:-20~+70℃
Storage Temperature:-30~+80℃
Industrial application
Multi-scenario application

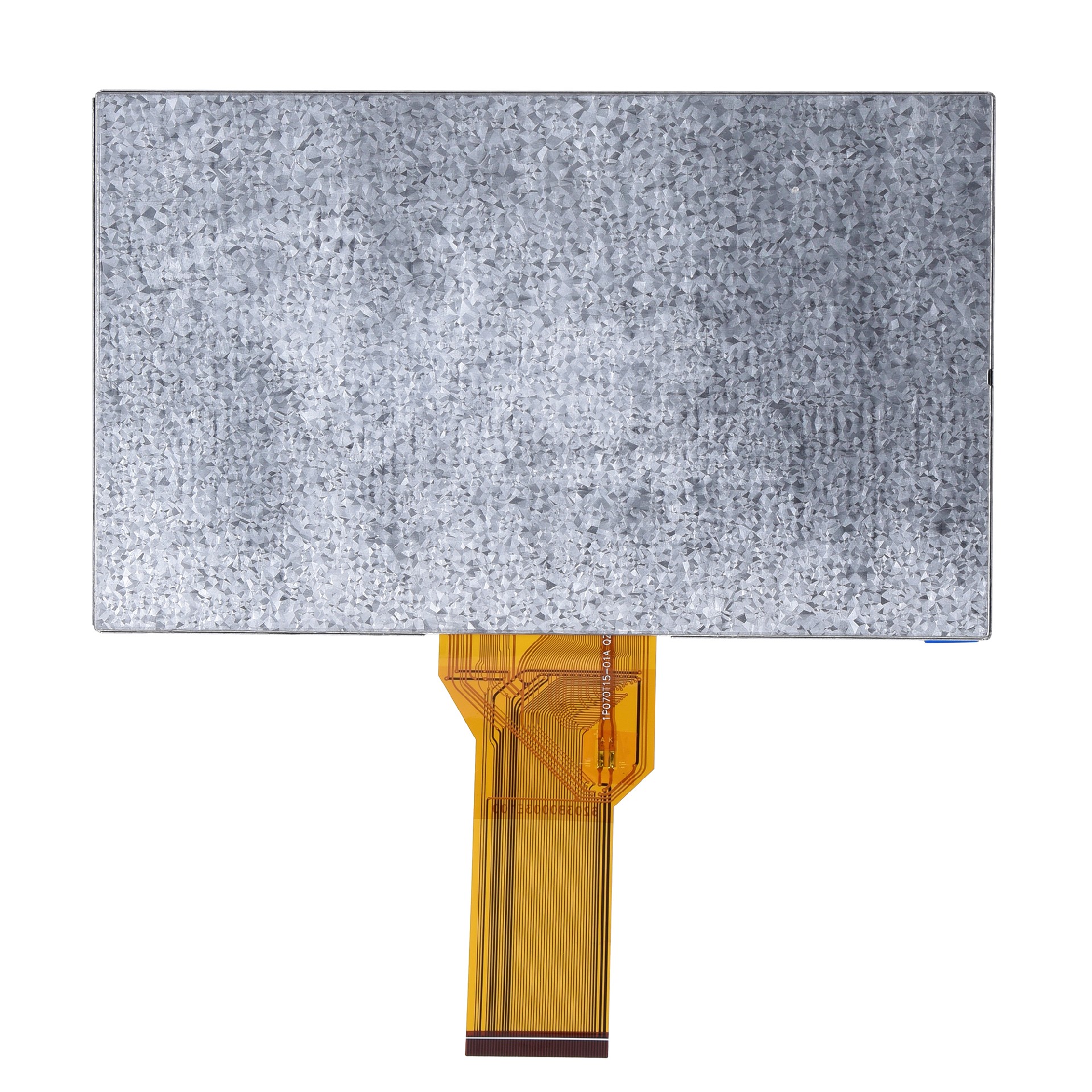

Standard LCD module
| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL070T15-01 | Resolution | 800X480 |
| Interface | RGB | Luminance | 500nits |
| LCD mode | 6 O'clock | Touch | Resistive & Capacitive |
| OD Size (mm) | 164.9X100 | AA Size (mm) | 151.68X85.92 |
| View Angle | 70/70/50/70 | Surface Treatment | Anti-glare |
| Op. Temp. | -20~+70℃ | St. Temp. | -30~+80℃ |
Portable Navigator
PMP, MP3/MP4 / Mobile digital TVs/ Digital frame
Industrial control panels
Automotive Dashboard
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
