Key Spec:
LCD Size: 10.4'' IPS
Resolution: 1024x768, 4:3 Ratio
Brightness: 1000nits
interface: LVDS
Working Temperature:-30~+80℃
Storage Temperatture:-40~+85℃
Industrial application
4:3 ratio
High brightness
Wide working temperature
| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL104T08-01 | Resolution | 1024x768 |
| Interface | LVDS | Luminance | 1000nits |
| LCD mode | IPS | Touch | Optional |

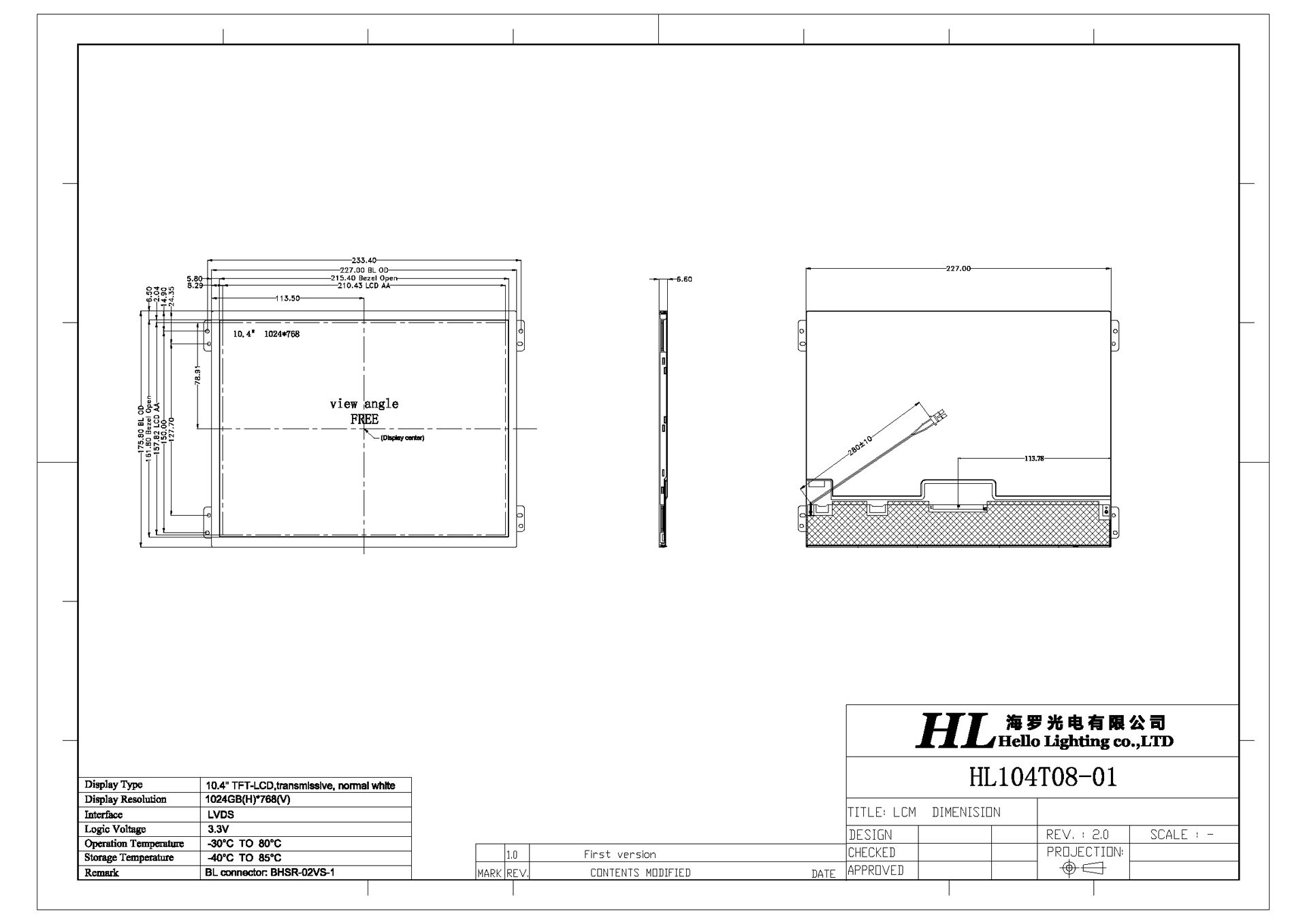

| OD Size(mm) | 233.4x175.8 | AA Size(mm) | 210.43x157.82 |
| View Angle | 80/80/80/80 | Surface Treatment | Anti-glare |
| Op.Temp. | -30~+80℃ | St. Temp. | -40~+85℃ |
Industrial Control Panel
Automotive Dashboard
Portable DVD
Digital Frame
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
