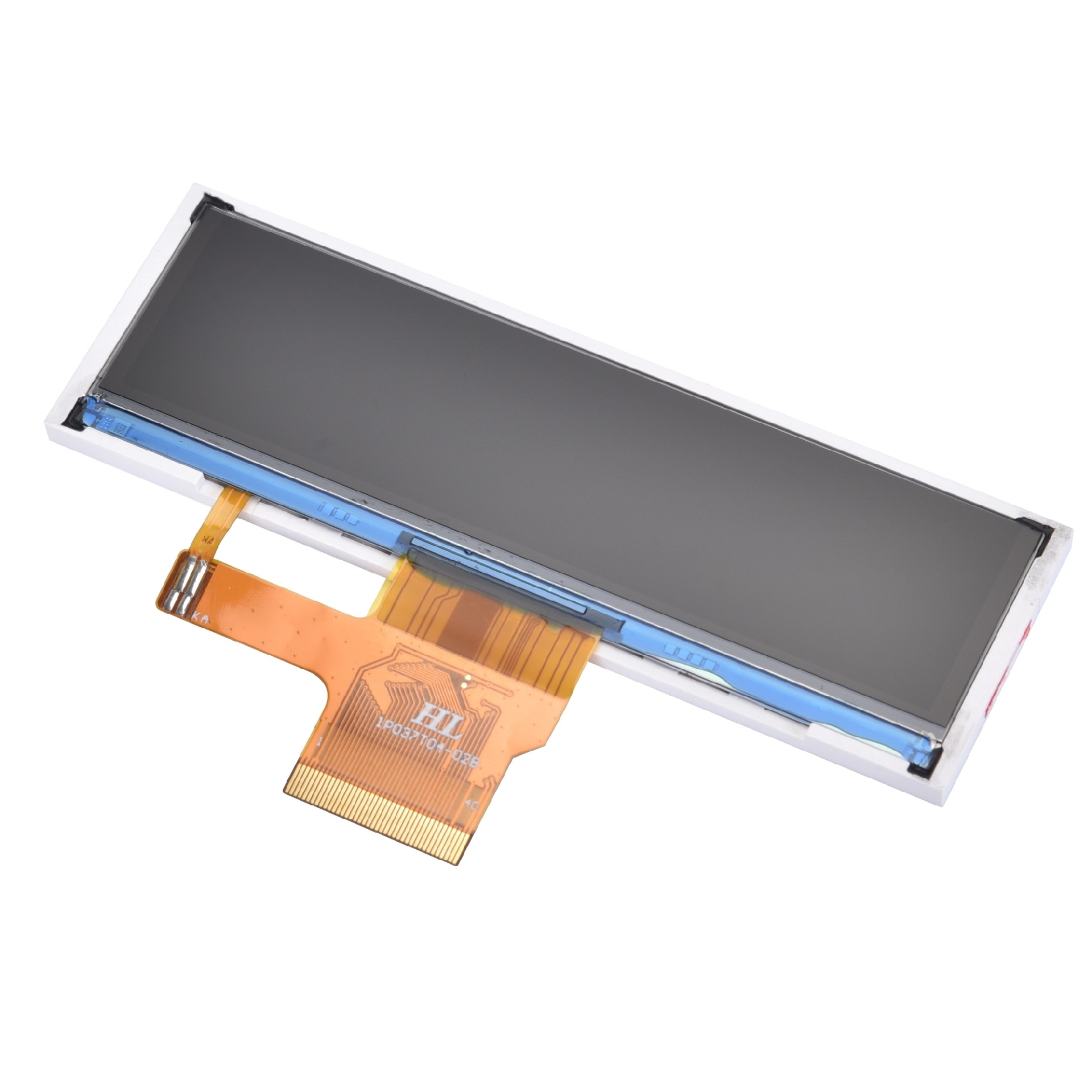

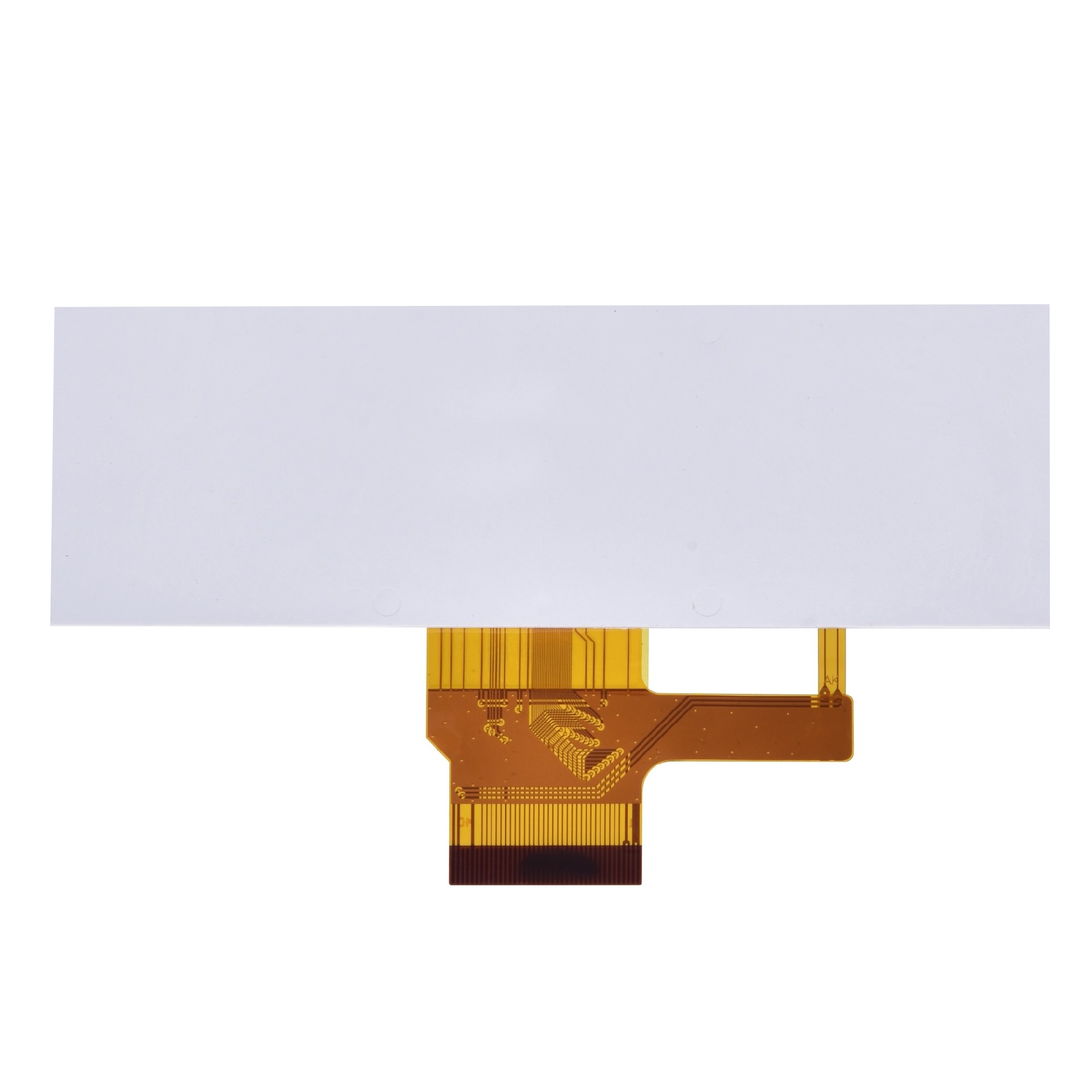

LCD Size: 3.7'' IPS
Resolution: 480X110
Extreme short in height
Brightness: 500nits
interface: RGB
Working Temperature:-20~+70℃
Storage Temperatture:-30~+80℃
IPS view angle: 80/80/80/80
Bar type,stretched LCD module
Cutting LCD display
Rohs/CE/UL compliance
Design for Power Supply System
| Manufacuture | Hello Lighting | Place of Origin | China |
| P/N | HL037T04-02 | Resolution | 480X110 |
| Interface | RGB | Luminance | 500nits |
| LCD mode | IPS | Touch | Optional |

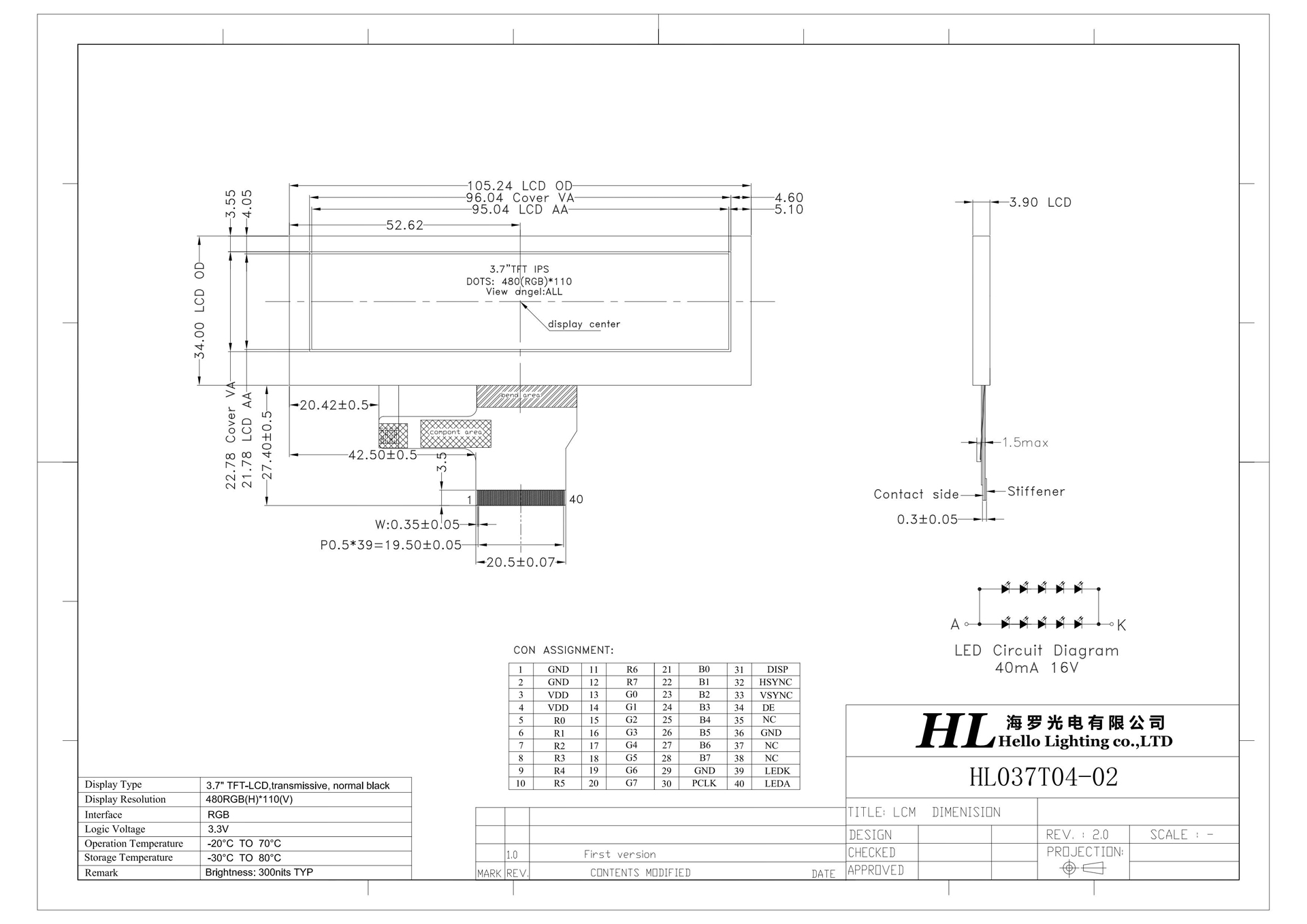

| OD size(mm) | 105.24X34 | AA size(mm) | 95.04X21.78 |
| View Angle | 80/80/80/80 | Surface treatment | Anti-glare |
| OP. Temp. | -20~+70℃ | St. Temp. | -30~+80℃ |
Designed for Industrial Power Supply System
Bar type cutting LCD display
Automotive dashboard
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
