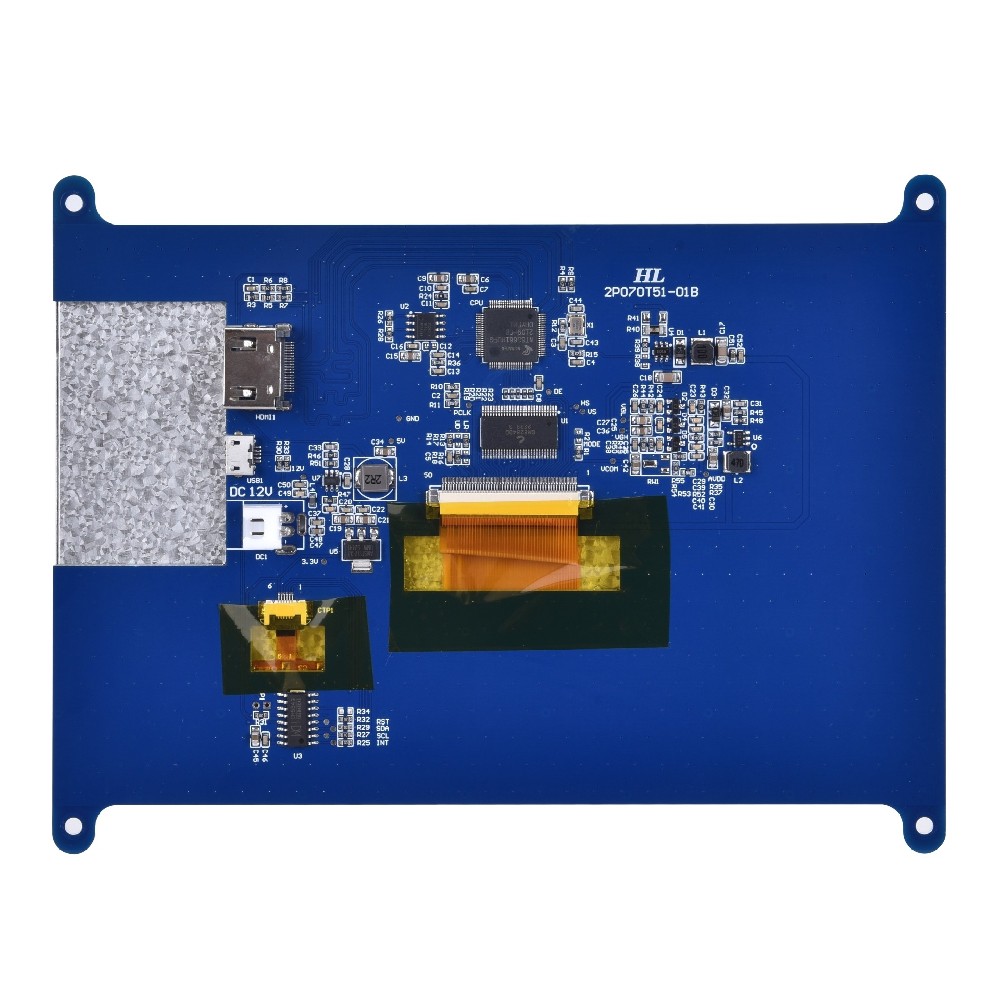

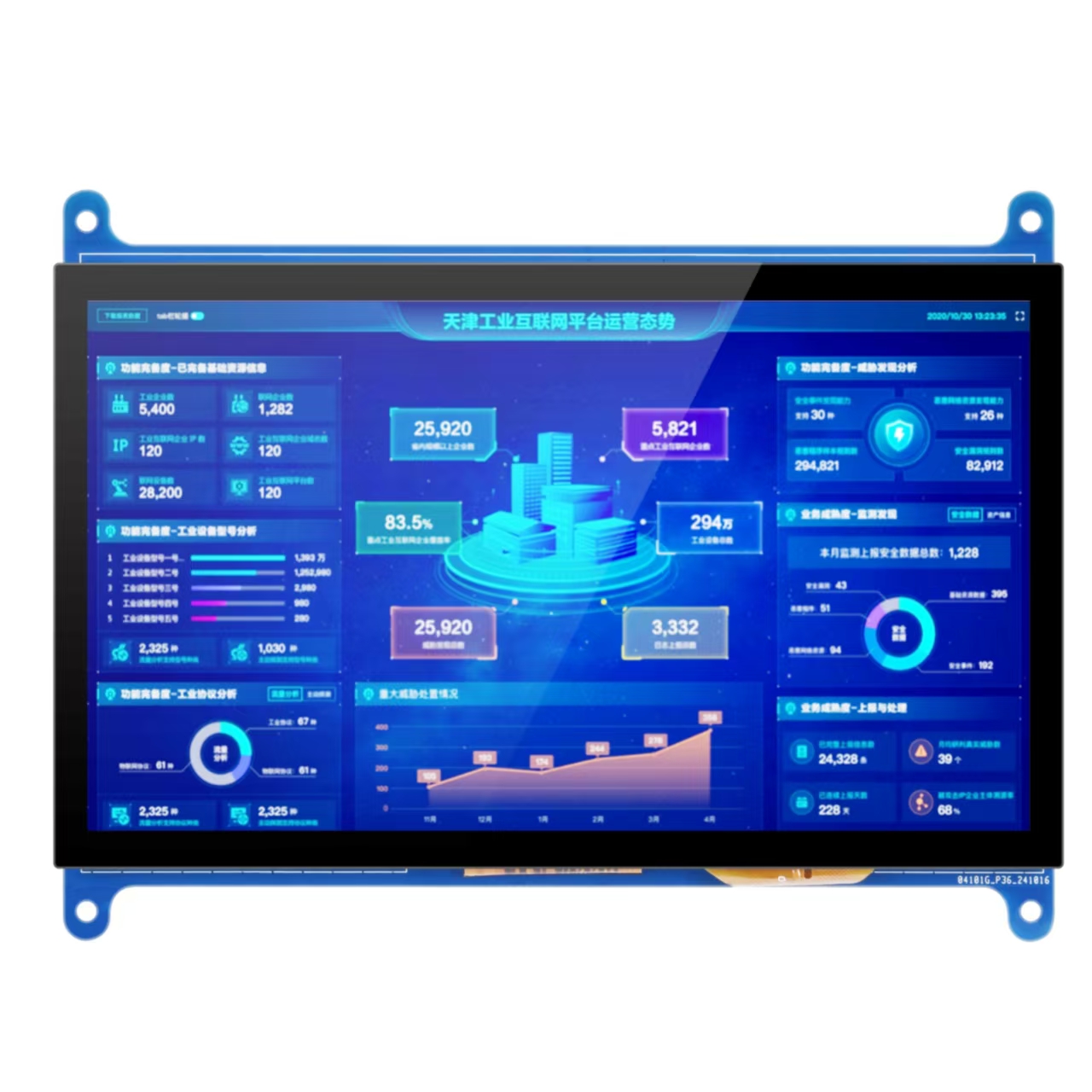

Key Spec:
LCD Size: 7'' IPS TFT LCD display
Touch: Capacitive Touch
Resolution: 1024x600
Brightness: 400nits
interface: HDMI
Working Temperature:-20C~+70℃
Storage Temperatture:-30C~+80℃
IPS view angle
Capacitive Touch
HDMI signal interface is easy for end customer to develop new product
With locations holes
Standard plastic case is available
Customized case / backside board is availble
Industrial application
Raspberry Pi display
| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL070T51-01 | Resolution | 1024X600 |
| Interface | HDMI | Luminance | 400nits |
| LCD mode | IPS | Touch | Capacitive Touch |

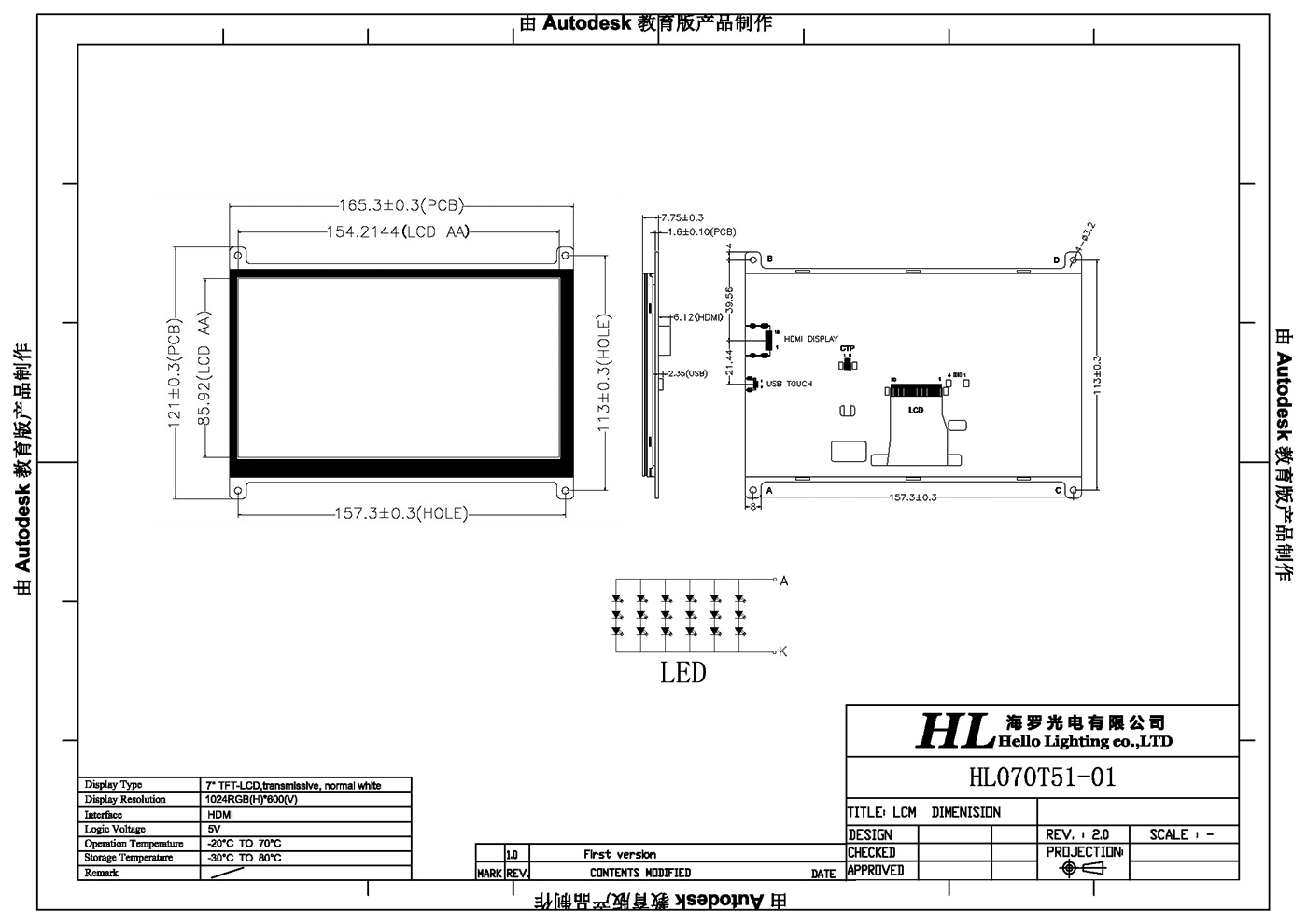

| OD size(mm) | 165.3X121X7.75 | AA Size(mm) | 154.2X85.92 |
| View Angle | 85/85/85/85 | Surface Treatment | Anti-glare |
| Op. temp. | -20~+70℃ | St. Temp. | -30~+80℃ |
Industrial control monitor
Raspberry Pi LCD display
Smart home appliance
Automotive entertainment monitor
Parking system monitor
EV charing station display
