Key Spec:

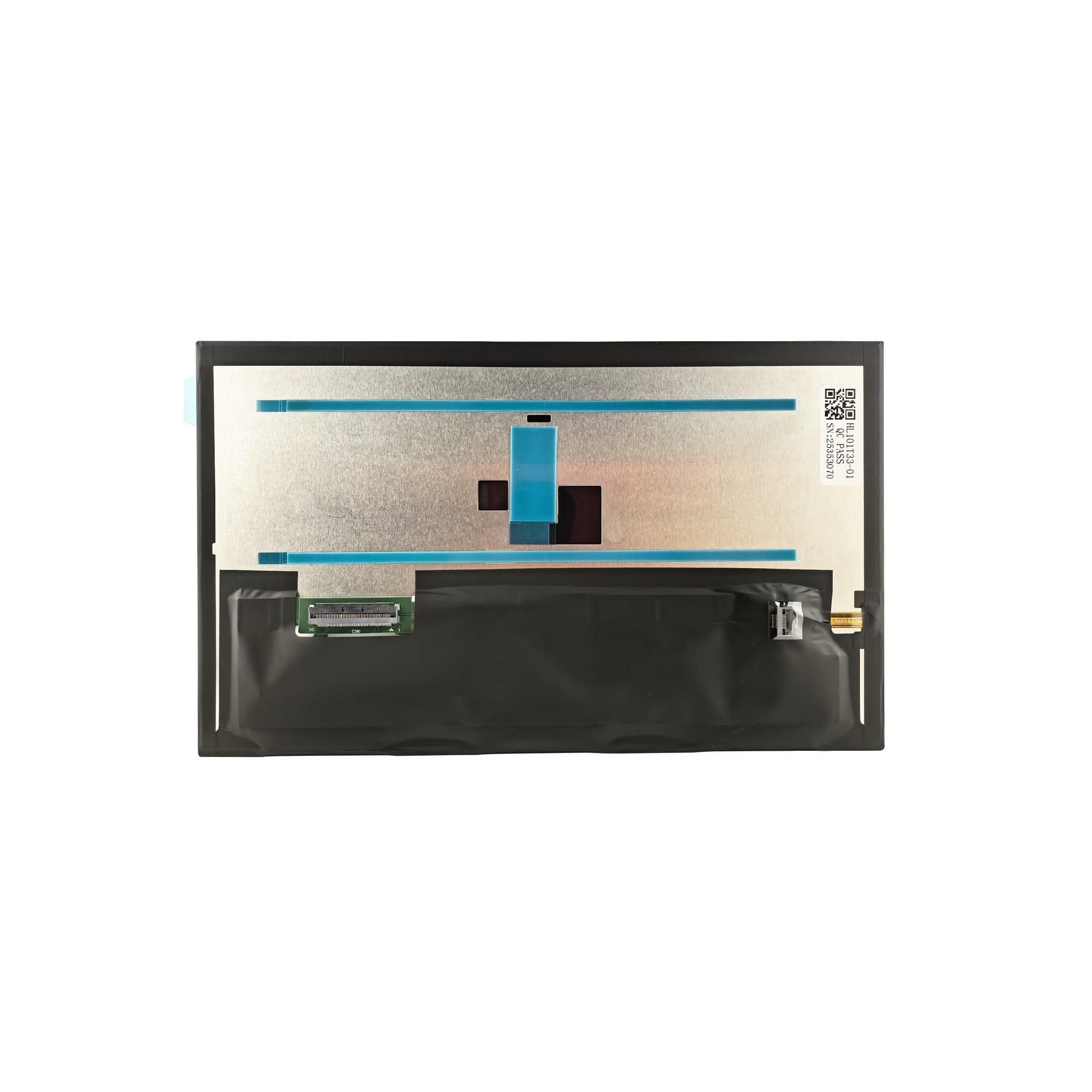

LCD Size: 10.1'' IPS TFT LCD display
Touch: External Capacitive Touch is available
Resolution: 1920x1080
Brightness: 1000nits
interface: LVDS
Working Temperature:-40~+85℃
Storage Temperatture:-40C~+90℃

IPS view angle
External Capacitive Touch is available
Standard 50pin LCD interface
Landscape 1920X1080 resolution
High brightness 1000nits, sunlight readable
Wide working temp. -40~ +85℃
Industrial / Medical / Automotive Applications

| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL101T33-01 | Resolution | 1920X1080 |
| Interface | LVDS | Luminance | 1000nits |
| LCD mode | IPS | Touch | Capacitive Touch |

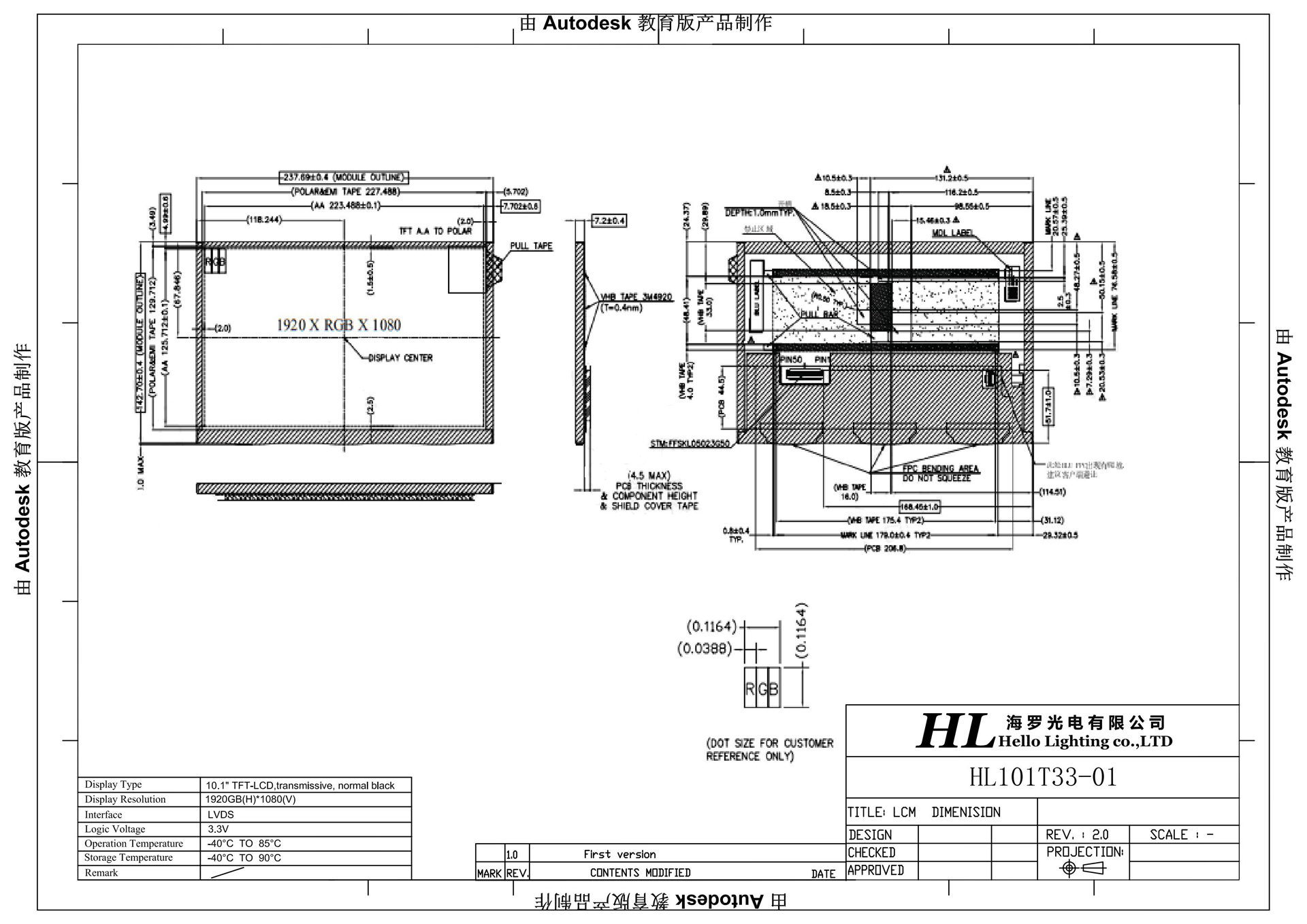

| OD size(mm) | 237.69X142.7X7.2 | AA Size(mm) | 223.488X125.712 |
| View Angle | 85/85/85/85 | Surface Treatment | Anti-glare |
| Op. temp. | -40~+85℃ | St. Temp. | -40~+90℃ |



Industrial control monitor
Medical instrument
Smart home device
Automotive Dashboard monitor
Parking system monitor
EV charing station display


IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line


Similar Panels:
| 10.1"/ | 1920X1200 | LVDS |
| 10.1"/HL101T36-01 | 1280X800 | LVDS |
| 10.1"/ | 1024X600 | LVDS |
| 10.1"/HL101T22-01 | 1200X1920 | mipi |
| 10.1"/ HL | 800X1280 | mipi |
| 10.1"/ | 720X1280 | mipi |
