Key Spec:
LCD Size: 10.1'' IPS
Resolution: 1280x800
Brightness: 1000nits
interface: LVDS
Working Temperature:-20~+70℃
Storage Temperatture:-30~+80℃

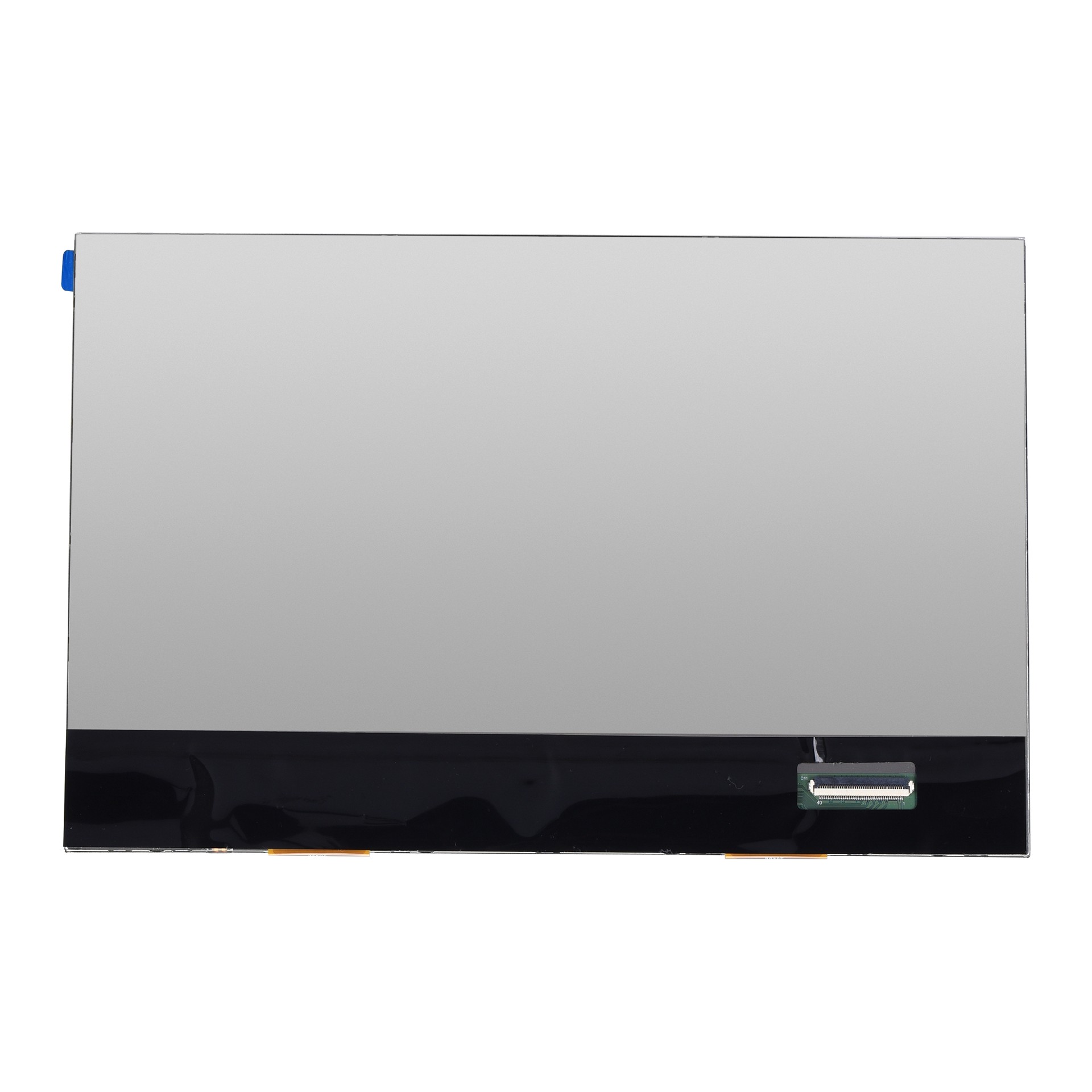

Landcape 10.1" LCD display
Vehicle application
Outdoor use
| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL101T36-01 | Resolution | 1280x800 |
| Interface | LVDS | Luminance | 1000nits |
| LCD mode | IPS | Touch | Optional |

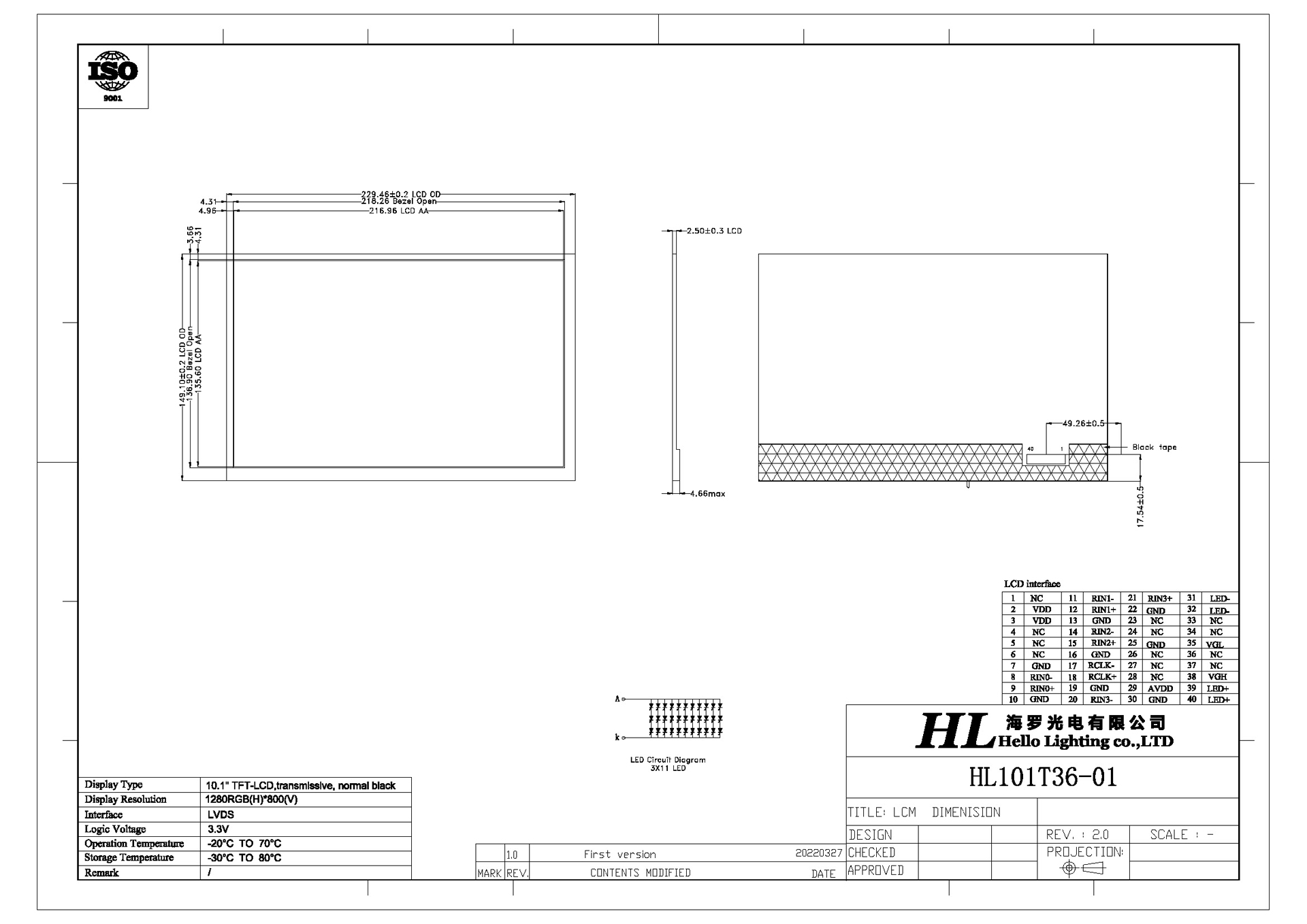

| OD Size (mm) | 229.46x149.10 | AA Size (mm) | 216.95x135.60 |
| View Angle | 80/80/80/80 | Surface Treatment | Anti-glare |
| Op. Temp. | -20~+70℃ | St. Temp. | -30~+80℃ |
Industrial Control Panel
Automotive Dashboard
Endoscope monitor display
White Goods
Smart Home Device
Charging Pile/Station for Electric Vehicle
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
