Key Spec:
LCD Size: 7'' IPS
Resolution: 800X480
Brightness: 1000nits
interface: LVDS
Working Temperature:-30~+85℃
Storage Temperatture:-40C~+90℃

full replacement of InnoLux G070Y2-L01
Wide working Temperature -30~+85℃
High brightness: 1000nits
Rugged Mechanical Design
Vehicle application

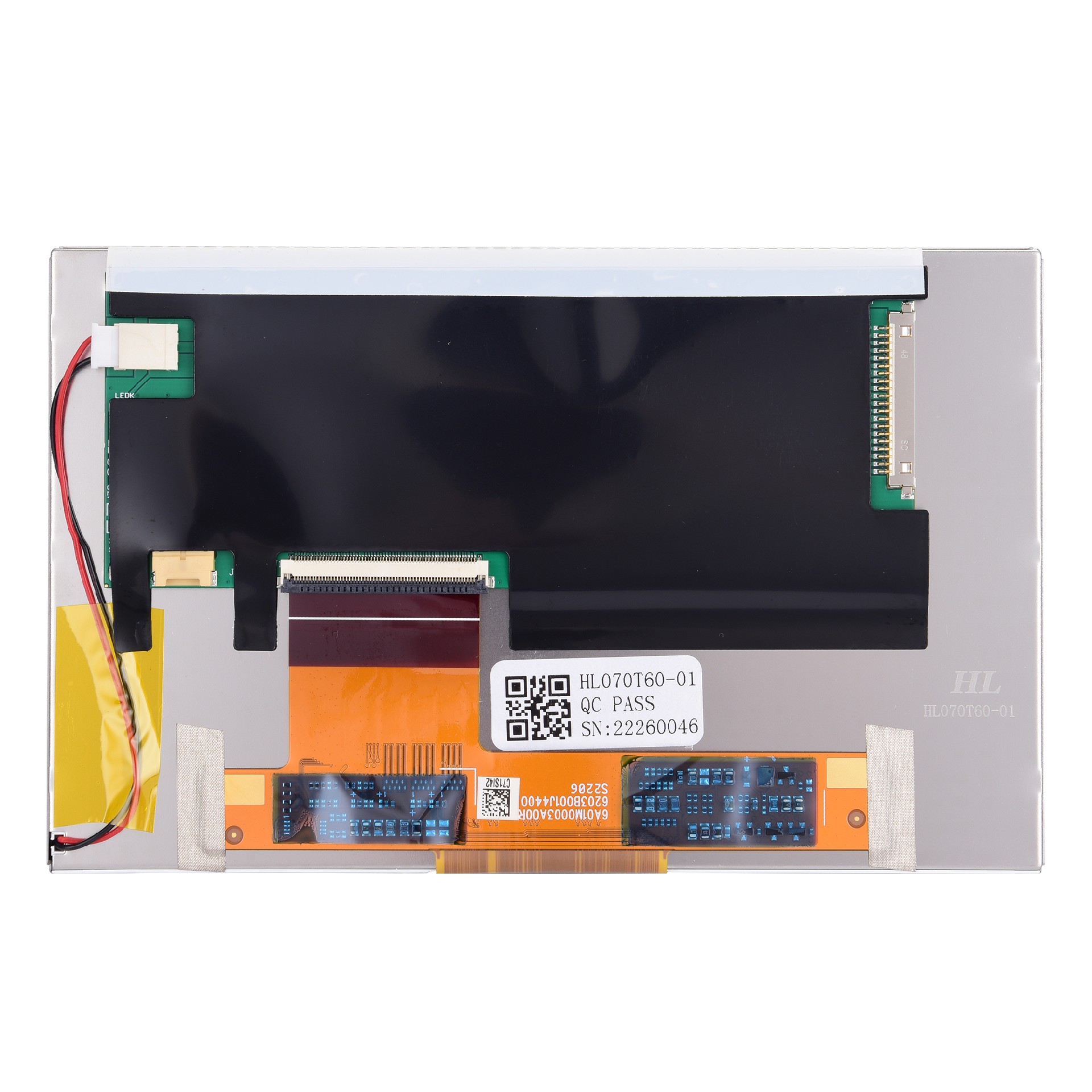

| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL070T60-01 | Resolution | 800X480 |
| Interface | LVDS | Luminance | 1000nits |
| LCD Mode | IPS | Touch | Optional |

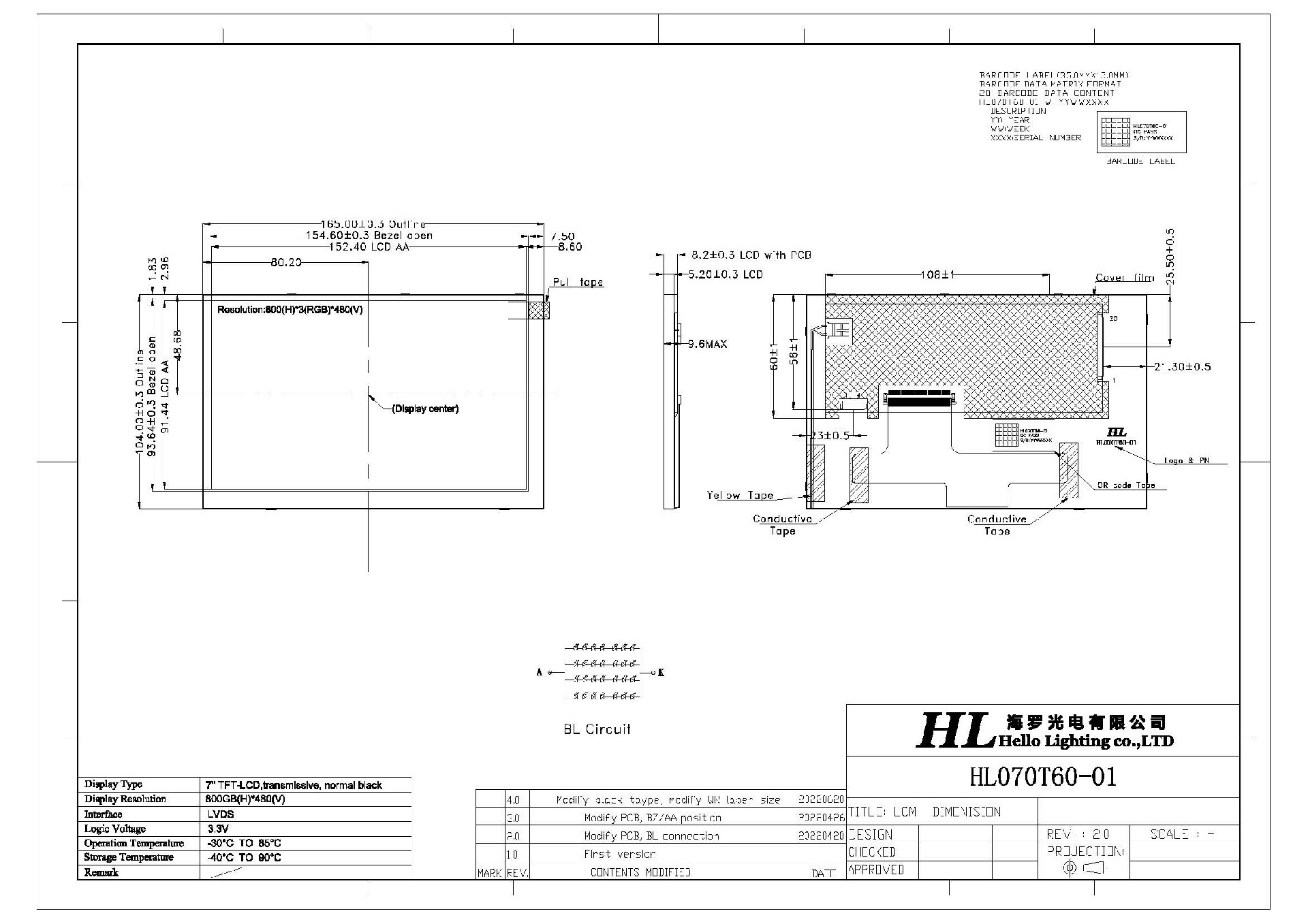

| OD Size(mm) | 165X104 | AA Size(mm) | 152.4X91.44 |
| View Angle | 80/80/80/80 | Surface Treatment | Anti-glare |
| Op. Temp. | -30~+85℃ | St. Temp. | -40~+90℃ |



100% compatible with InnoLux G070Y2-L01
Off road contorl panel for Excavators/Mobile cranes/Implement Carrier/Spraying machines/Tractors
Automotive Dashboard
Industrial contorl panel
Medical Device
Military/Defence application
Other harsh environment needed device


IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
