Key Spec:
LCD Size: 12.3'' IPS
Resolution: 1920X720
Brightness: 350nits
interface: LVDS
Working Temperature:-40~+85℃
Storage Temperatture:-40~+90℃

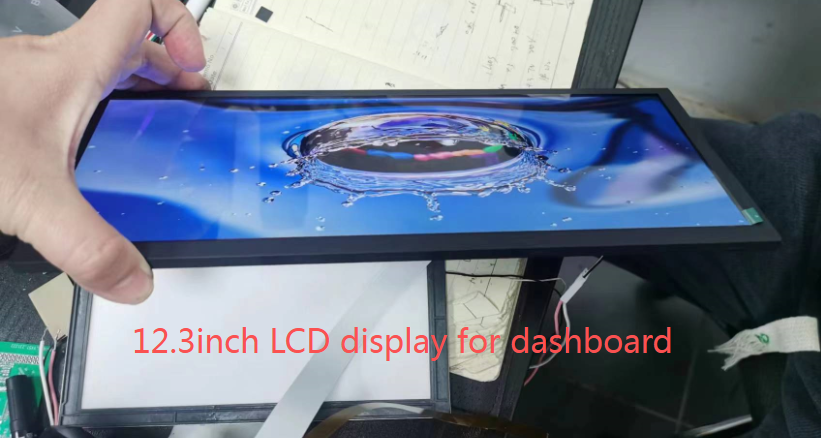

Stretched bar LCD display
Automotive dashboard
Wide working Temperature -40~+85℃
Rugged Mechanical Design
Vehicle application

| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL123T02C-01 | Resolution | 1920X720 |
| Interface | LVDS | Luminance | 800nits |
| LCD Mode | IPS | Touch | Yes |

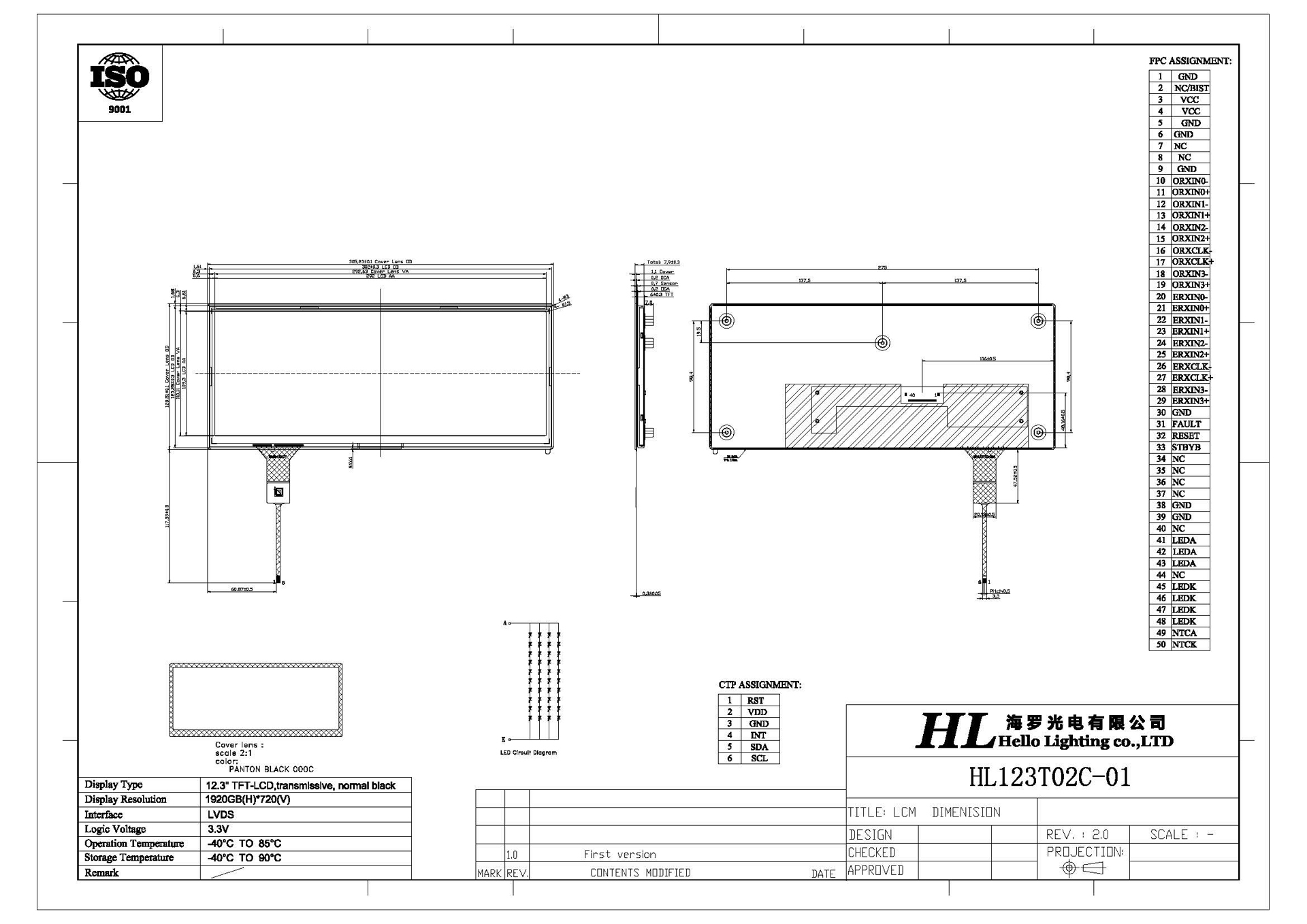

| OD Size(mm) | 305.23X128.51 | AA Size(mm) | 292X109.5 |
| View Angle | 80/80/80/80 | Surface Treatment | Anti-glare |
| Op. Temp. | -40~+85℃ | St. Temp. | -40~+90℃ |



100% compatible with HannStar HSD123JPW3-A10
Off road contorl panel for Excavators/Mobile cranes/Implement Carrier/Spraying machines/Tractors
Automotive Dashboard
Industrial contorl panel
Medical Device
Military/Defence application
Other harsh environment needed device


IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
