Key Spec:
LCD Size: 10.25'' IPS
Resolution: 1280X480
Brightness: 800nits
interface: LVDS
Working Temperature:-40~+85℃
Storage Temperatture:-40~+90℃
Stretched bar LCD display
Build-in Automotive dashboard for car manufacture
Wide working Temperature -40~+85℃
High Brightness 800nits
Rugged Mechanical Design
Vehicle application
| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL103T01-01 | Resolution | 1280X480 |
| Interface | LVDS | Luminance | 800nits |
| LCD Mode | IPS | Touch | Yes |

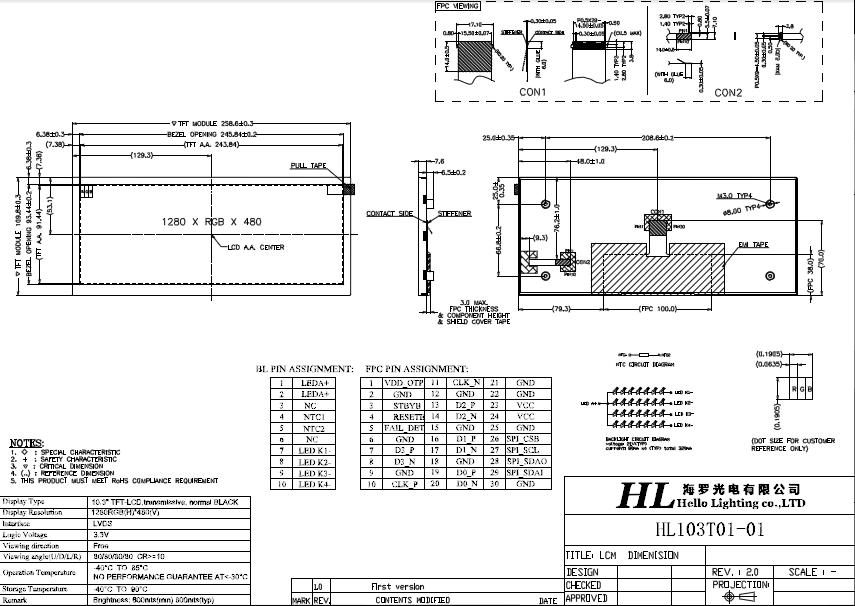

| OD Size(mm) | 258.6X109.8 | AA Size(mm) | 243.84X91.44 |
| View Angle | 80/80/80/80 | Surface Treatment | Anti-glare |
| Op. Temp. | -40~+85℃ | St. Temp. | -40~+90℃ |
100% compatible with HannStar HSD123JPW3-A10
Off road contorl panel for Excavators/Mobile cranes/Implement Carrier/Spraying machines/Tractors

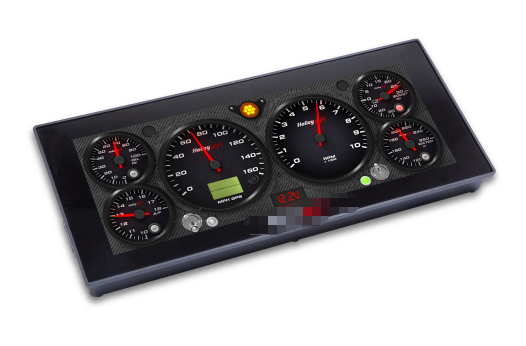

Automotive Dashboard
Industrial contorl panel
Medical Device
Military/Defence application
Other harsh environment needed device
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
