Key Spec:
LCD Size: 10.25'' IPS
Resolution: 1920X720
Brightness: 1000nits
interface: LVDS 60pin
Working Temperature:-40~+85℃
Storage Temperatture:-40~+90℃
Stretched bar LCD display
Build-in Automotive dashboard for car manufacture
Wide working Temperature -40~+85℃
LVDS 60pins
High Brightness 1000nits
Rugged Mechanical Design
Vehicle application
| Manufacturer | Hello Lighting | Place of Origin | China |
| P/N | HL103T03-01 | Resolution | 1920X720 |
| Interface | LVDS | Luminance | 1000nits |
| LCD Mode | IPS | Touch | Yes |

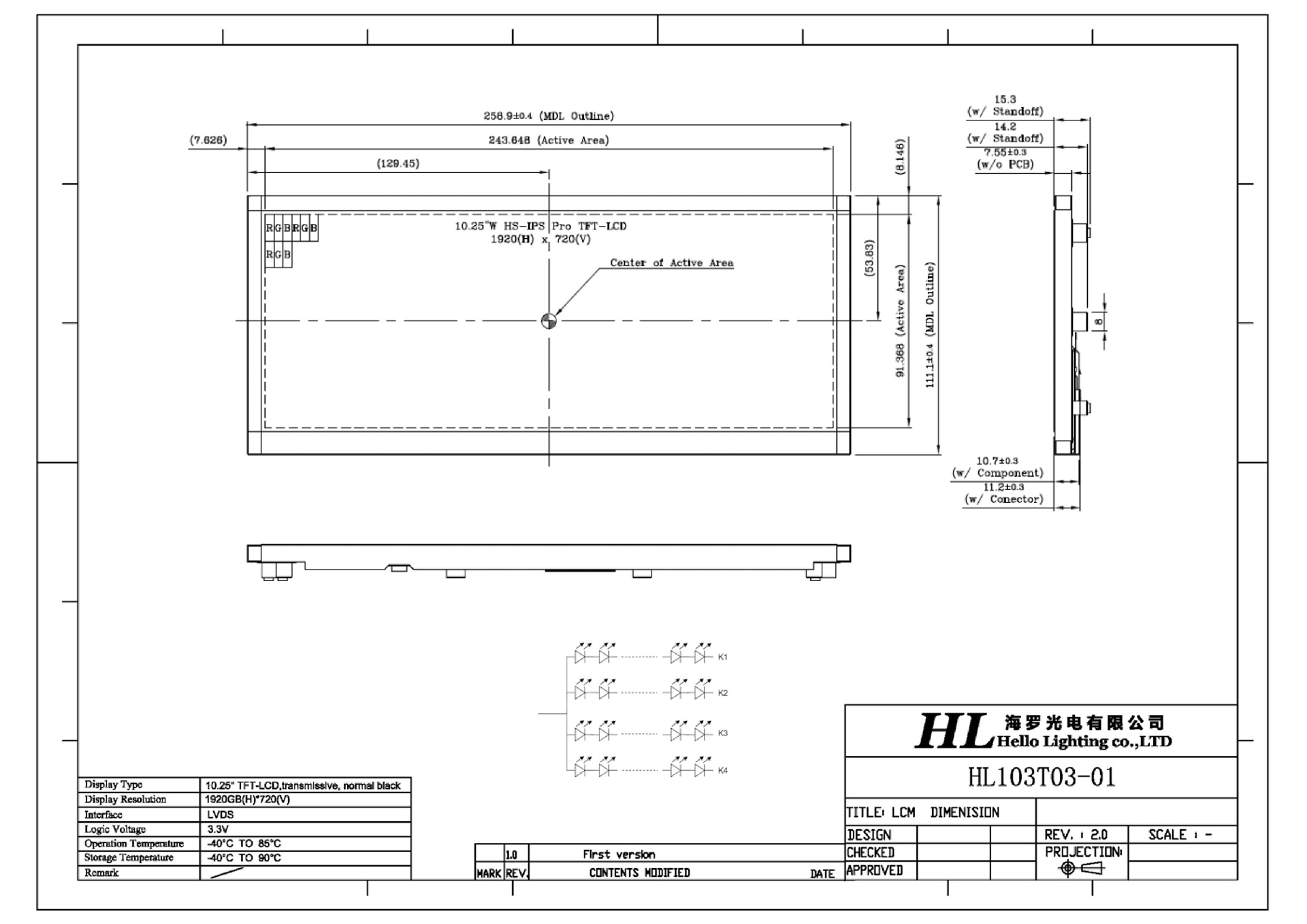

| OD Size(mm) | 258.9X111.1 | AA Size(mm) | 243.64X91.368 |
| View Angle | 85/85/85/85 | Surface Treatment | Anti-glare |
| Op. Temp. | -40~+85℃ | St. Temp. | -40~+90℃ |
100% compatible with HannStar HSD123JPW3-A10
Off road contorl panel for Excavators/Mobile cranes/Implement Carrier/Spraying machines/Tractors
Automotive Dashboard
Industrial contorl panel
Medical Device
Military/Defence application
Other harsh environment needed device
IATF16949 certification
ISO9001 certification
High-tech Enterprise Certification
Fully automated production line
